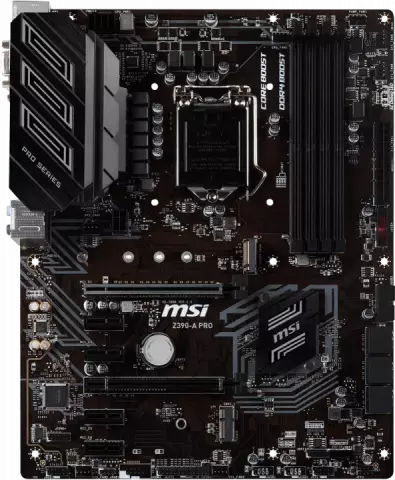

مادربرد MSI DDR4 مدل Z390-A PRO

LGA1151 v2

Intel Z390

Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket

DDR4

4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz

HDMI/DVI-D/DisplayPort ports

1 x VGA port

supports a maximum resolution of 2048x1536@50Hz

2048x1280@60Hz

1920x1200@60Hz 1 x DVI-D port

supports a maximum resolution of 1920x1200@60Hz 1 x DisplayPort

supports a maximum resolution of 4096x2304@60Hz

1 x M.2 slot (Key M)

0/1/5/10

Intel I219-V

Realtek ALC892

1 x DVI-D

ATX

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 1 x Serial Port connector 1 x Clear CMOS jumper 1 x Parallel port connector 1 x TPM module connector 1 x thunderbolt Add-on card connector 1 x Front OC button connector
