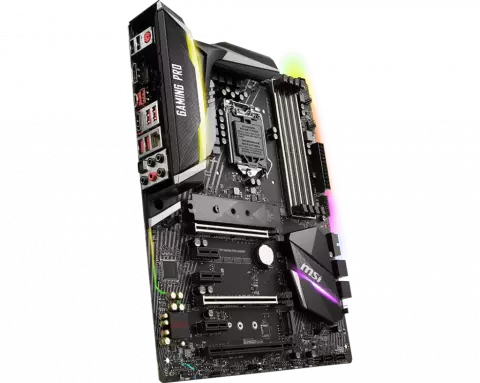

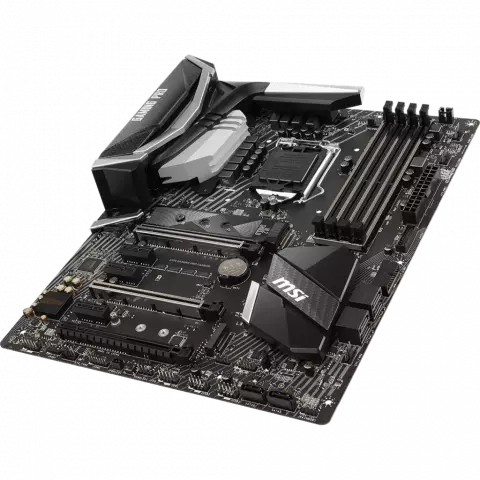

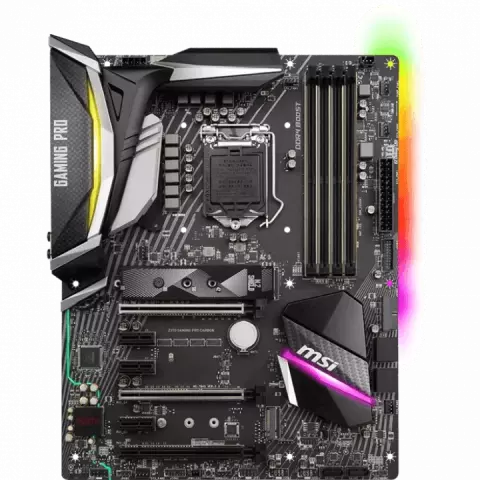

مادربرد MSI DDR4 مدل Z370 GAMING PRO CARBON

LGA1151

Intel Z370

Supports 8th Generation Intel Core Processors

and Intel Pentium and Celeron Processors

DDR4

4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz

Supports Dual-Channel mode Supports non-ECC

un-buffered memory

HDM

DisplayPort

DisplayPort port

supports a maximum resolution of 4096X2304@24Hz

3840X2160@60Hz

1920X1200@60Hz HDMI port

supports a maximum resolution of 4096x2160@30Hz

2560x1600@60Hz

Supports 2-Way NVIDIA SLI Technology

Supports 3-Way AMD CrossFire Technology

2 x M.2 slots

RAID 0

1

5

10 / Supports RAID 0

RAID 1 for M.2 PCIe storage devices

Intel I219-V Gigabit LAN controller

Realtek ALC1220 Codec

3 x PCIe 3.0 x16 slots (support x16/x0/x4

x8/x8/x4 modes)

ATX

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 2 x 5050 RGB LED strip 12V connectors 1 x WS2812B Individually Addressable RGB LED strip 5V connector 1 x CORSAIR Individually Addressable RGB LED strip 5V connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

دارای قابلیت RGB
