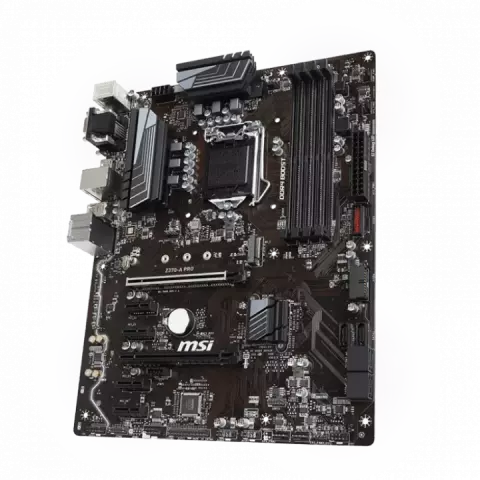

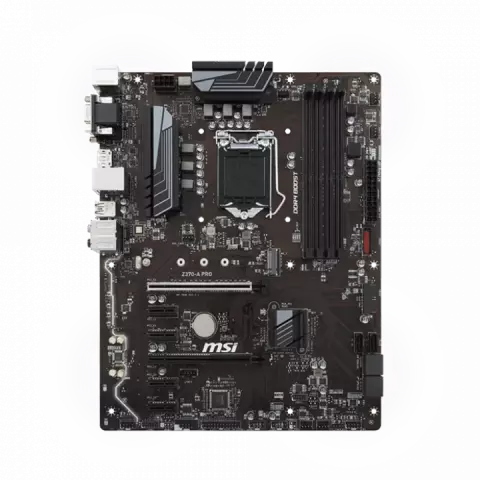

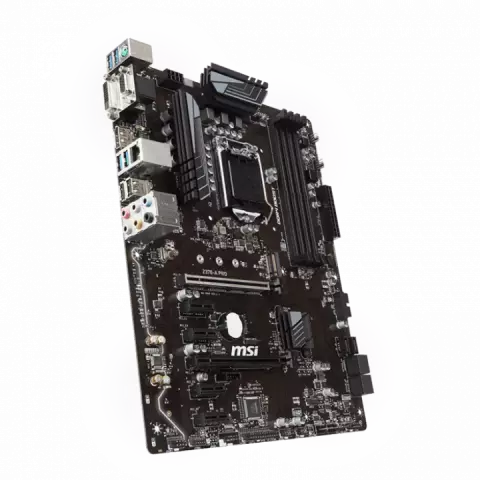

مادربرد MSI DDR4 مدل Z370-A PRO

LGA1151

Intel Z370

8th Gen Intel Core processors

and Intel Pentium and Celeron processors

DDR4

4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz

Dual channel memory architecture Supports non-ECC

un-buffered memory

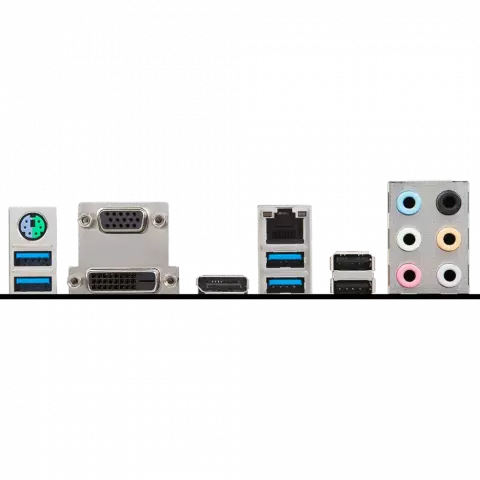

VGA / DVI-D / DisplayPort

VGA port

supports a maximum resolution of 2048x1536@50Hz

2048x1280@60Hz

1920x1200@60Hz DVI-D port

supports a maximum resolution of 1920x1200@60Hz DisplayPort

supports a maximum resolution of 4096x2304@24Hz

2560x1600@60Hz

3840x2160@60Hz

1920x1200@60Hz

Supports 2-Way AMD CrossFire Technology

1 x M.2 slot (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devices M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices

Raid 0

1

5

10

RTL8111H Gigabit LAN controller

Realtek ALC892 Codec

1 x DVI-D port

ATX

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x Thunderbolt Add-on Card Connector 1 x Clear CMOS jumper

دارای LED با نور سفید
