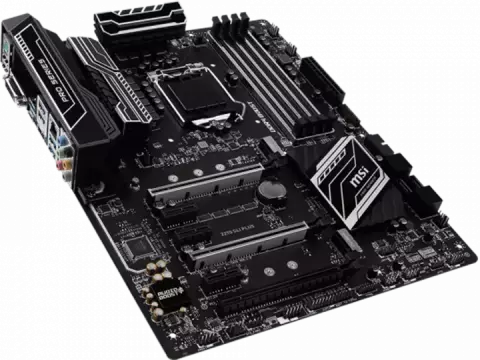

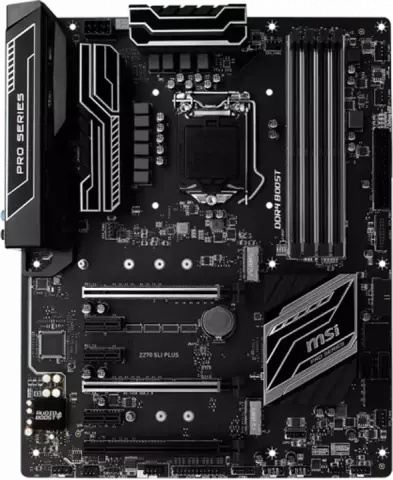

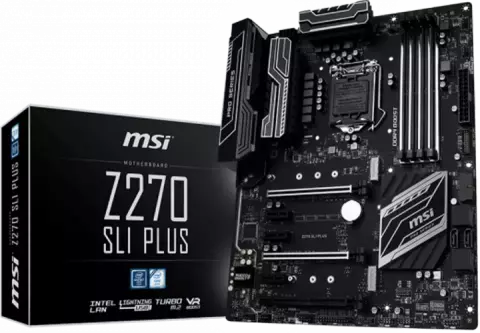

مادربرد MSI DDR4 مدل Z270 SLI PLUS

LGA1151

Intel Z270

Supports 6th/ 7th Gen Intel® Core™ i3/i5/i7 processors

and Intel® Pentium® and Celeron® processors for Socket LGA1151

DDR4

DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz

Dual channel memory architecture Supports non-ECC

un-buffered memory

HDMI /DVI-D ports

HDMI™ port

supports a maximum resolution of 4096x2160@30Hz(7th CPU)

4096x2160@24Hz(6th CPU)

2560x1600@60Hz DVI-D port

supports a maximum resolution of 1920x1200@60Hz

Supports 2-Way NVIDIA® SLI™ Technology

Supports 3-Way AMD® CrossFire™ Technology

2 x M.2 slot (Key M) M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices M2_2 slot supports 2242/ 2260 /2280 storage devices

Supports RAID 0

RAID 1

RAID 5 and RAID 10 for SATA storage devices // Supports RAID 0 and RAID 1 for M.2 storage devices

1 x Intel® I219-V Gigabit LAN controller

Realtek® ALC1220 Codec

3 x PCIe 3.0 x16 slots (support x16/x0/x4

x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots

1

ATX

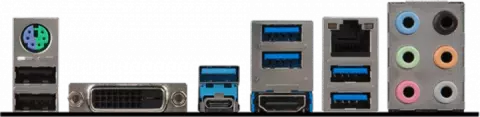

• ASMedia® ASM2142 Chipset - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel • Intel® Z270 Chipset - 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel

4 ports available through the internal USB connectors) - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel

4 ports available through the internal USB connectors)

- 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x 4-pin CPU fan connector - 1 x 4-pin water pump fan connector - 4 x 4-pin system fan connectors - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x RGB LED connector - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Parallel port connector - 1 x Clear CMOS jumper
