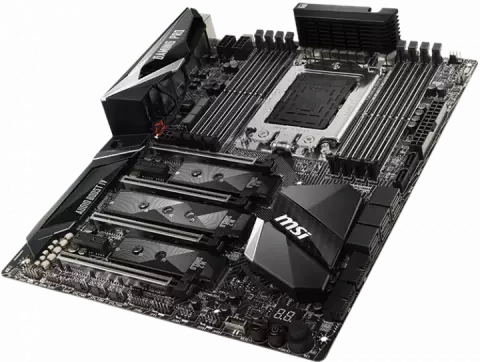

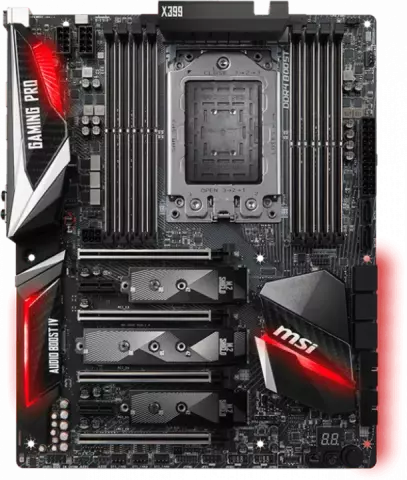

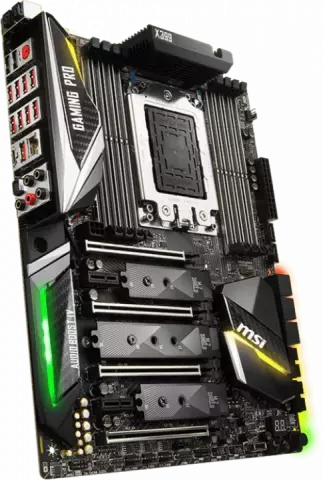

مادربرد MSI DDR4 مدل X399 GAMING PRO CARBON AC

AMD X399

RYZEN THREADRIPPERTM Series Processors

DDR4

3600+(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2667/ 2400/ 2133 MHz

Quad channel memory architecture

Supports 4-Way NVIDIA SLI Technology

Supports 4-Way NVIDIA SLI Technology

3 x M.2 slots (Key M) M2_1

M2_3 slots support 2242/ 2260 /2280 storage devices M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

Supports RAID 0

1

10 for SATA storage devices

1 x Intel I211 Gigabit LAN controller / Supports Wi-Fi 802.11 a/b/g/n/ac

dual band (2.4GHz

5GHz) up to 867 Mbps speed

Realtek ALC1220 Codec

4 x PCIe 3.0 x16 slots Intel Dual Band Wireless-AC 8265 card Supports Dual Mode Bluetooth 2.1

2.1+EDR

3.0

4.0

BLE

4.2

1 x Clear CMOS button 1 x BIOS FLASHBACK+ button

ATX

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector* 8 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 4 x 4-pin system fan connectors 2 x Front panel connectors 1 x Front panel audio connector 2 x RGB LED connector 1 x TPM module connector 1 x LED demo connector 1 x Rest Button 1 x Power Button 1 x OC Button 1 x Chassis Intrusion connector 1 x clear CMOS header
