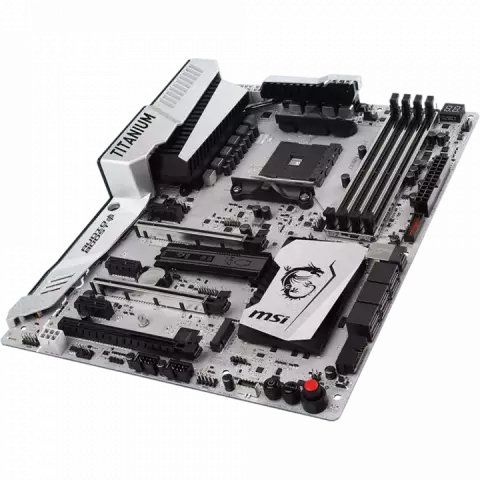

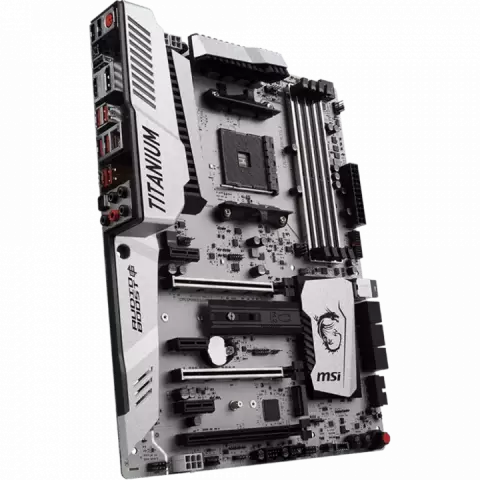

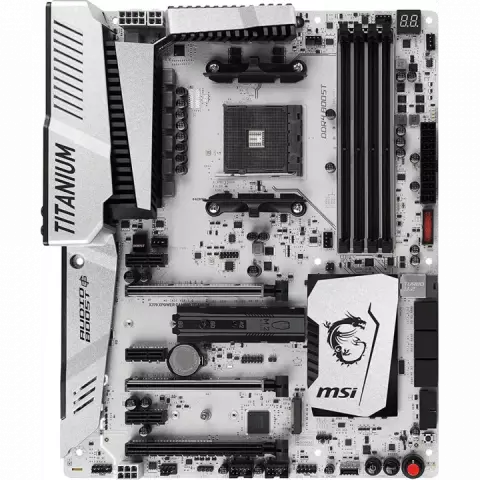

مادربرد MSI DDR4 مدل X370 XPOWER GAMING TITANIUM

AM4

AMD X370

AMD RYZEN series processors and 7th Gen A-series/ Athlon processors

DDR4

1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz

Dual channel memory architecture

HDMI / DisplayPort

HDMI 2.0 port

supports a maximum resolution of 4096x2160@60Hz1 DisplayPort

supports a maximum resolution of 4096x2160@60Hz

Supports 2-Way NVIDIA SLI Technology

Supports 3-Way AMD CrossFire Technology Supports 2-Way AMD CrossFire Technology

2 x M.2 ports (Key M) M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors) M2_2 slot supports PCIe 2.0 x4

Raid 0

1

10

1 x Intel I211AT Gigabit LAN controller

Realtek ALC1220 Codec

2 x PCIe 3.0 x16 slots (PCIE_2

PCIE_4) 1 x U.2 port Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors) NVMe storage

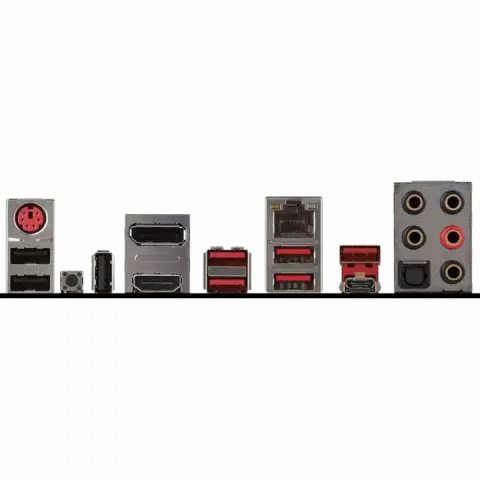

PS/2 GAMING Device Port 1 X Clear CMOS Button 1 X BIOS FLASHBACK+ 2 X VR Ready USB 3.1 Gen1 Ports

ATX

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x 6-pin ATX PCIe power connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x RGB LED connector 1 x Digit Debug Code LED 1 x 2-pin Slow mode connector 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector

هدیه همراه : SSD 128GB PLEXTOR S3
