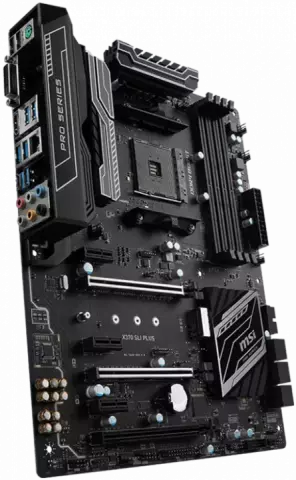

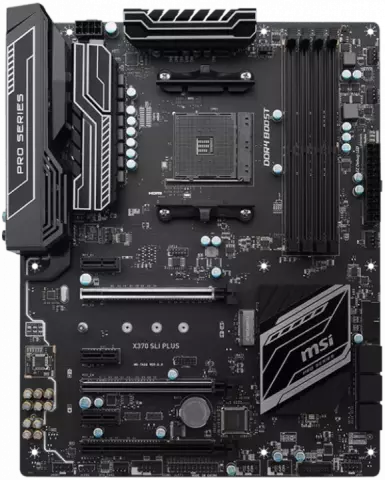

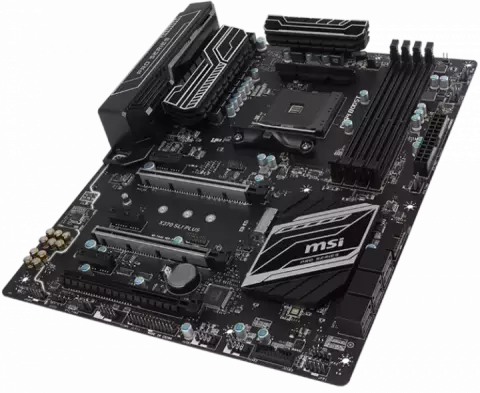

مادربرد MSI DDR4 مدل X370 SLI PLUS

AM4

AMD X370

Supports AMD RYZEN series processors and 7th Gen A-series/ Athlon processors

DDR4

1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz

Dual channel memory architecture Supports non-ECC

un-buffered memory Supports ECC UDIMM memory (non-ECC mode)

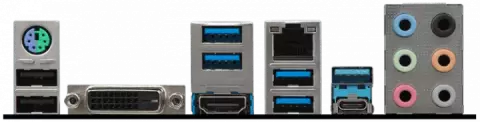

DVI-D port / HDMI

supporting a maximum resolution of 1920x1200@60Hz

1600x1200@60Hz supports a maximum resolution of 2560x1600@60Hz

RYZEN series processor Supports 2-Way NVIDIA SLI Technology

RYZEN series processor : Supports 3-Way AMD CrossFire Technology 7th Gen A-series/ Athlon processor : Supports 2-Way AMD CrossFire Technology

1 x M.2 (Key M)

Raid 0

1

10

1 x Realtek 8111H Gigabit LAN controller

Realtek ALC892 Codec

2x PCIe 3.0 x16 slots (PCIE_2

PCIE_4) 1x PCIe 2.0 x16 slot (PCIE_6

supports x4 mode)

1

ATX

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)

1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin PUMP fan connector (supports up to 2A) 4 x 4-pin system fan connectors 1 x RGB LED connector 1 x TPM module connector 1 x Serial port connector 1 x Parallel port connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

دارای قابلیت RGB
