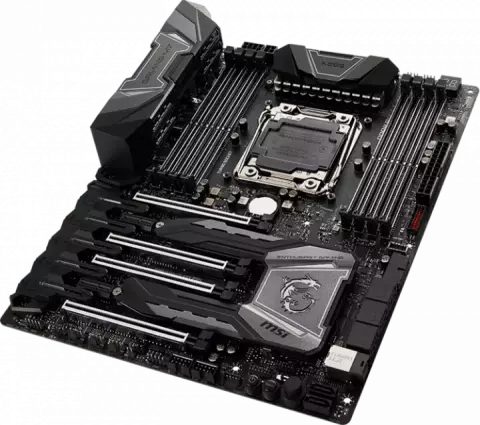

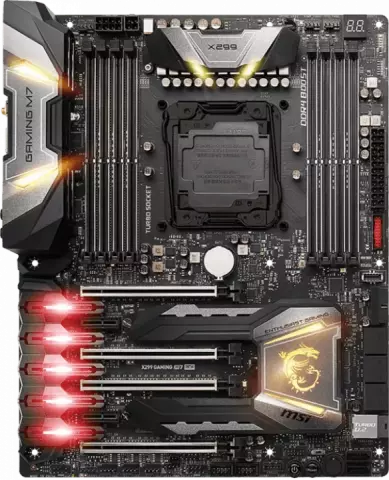

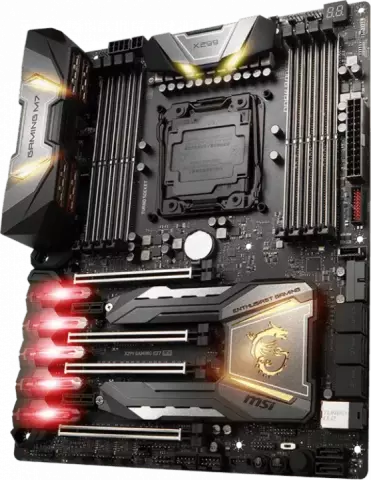

مادربرد MSI DDR4 مدل X299 GAMING M7 ACK

LGA2066

Intel X299

X-series Processor

DDR4

X-series Processors (6-core above CPU 78XX/79XX) : 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz X-series Processors (4 core CPU i7-7740X/i5-7640X) : 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/ 3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz

Intel Core X-series Processors (6-core above CPU 78XX/79XX) : 8 x DIMM

Max. 128GB

Quad channel memory architecture. Intel Core X-series Processors (4 core CPU i7-7740X/i5-7640X) : 4 x DIMM

Max. 64GB

Dual channel memory architecture.

Supports 3-Way NVIDIA SLI Technology

Supports 3-Way AMD CrossFire Technology

2 x M.2 slots (Key M) M2_1 slot supports 2242/ 2260 /2280 storage devices M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

Supports RAID 0

1

5

10 for SATA storage devices / Supports RAID 0

1 for M.2 storage devices

1 x Killer E2500 Gigabit LAN controller / Killer Wireless-AC 1535 module

Dual Realtek ALC1220 Codec

1 x U.2 port 4 x PCIe 3.0 x16 slots Support x16/ x4/ x16/ x8 mode with the 44-lane CPU. Support x16/ x4/ x8/ x0

x8/ x4/ x8/ x8 modes with the 28-lane CPU. Support x8/ x0/ x8/ x0

x8/ x4/ x4/ x0 modes with the 16-lane CPU.

1 x Clear CMOS button 1 x BIOS FLASHBACK+ button 2 x Wi-Fi Antenna connectors (optional)

ATX

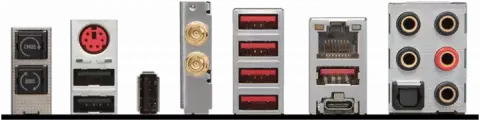

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 8 x SATA 6Gb/s connectors 3 x M.2 slots (Key M x2

Key E x1) 1 x U.2 port 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Virtual RAID on CPU connector 1 x Clear CMOS jumper 1 x Slow mode booting jumper 1 x GAME BOOST knob 1 x Power button 1 x Reset button 1 x Multi-BIOS switch 1 x RGB LED connector 1 x 2-Digit Debug Code LED

دارای قابلیت RGB
