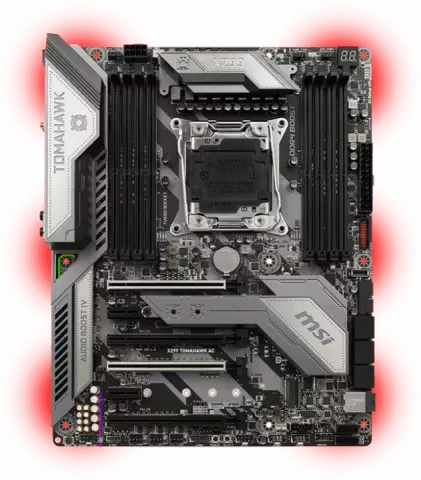

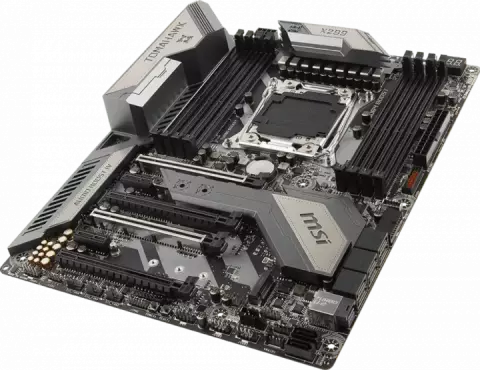

مادربرد MSI DDR4 مدل TOMAHAWK AC X299

LGA2066

Intel X299

X-Series Processors

DDR4

Intel Core X-series Processors (6-core above CPU 78XX/79XX) : 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz Intel Core X-series Processors (4 core CPU i7-7740X/i5-7640X) : 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz

Intel Core X-series Processors (6 core above CPU 78XX/79X) : 8 x DIMM

Max. 128GB Intel Core X-series Processors (4 core CPU i7-7740X/i5-7640X) : 4 x DIMM

Max. 64GB

Supports 3-Way NVIDIA SLI Technology

Supports 3-Way AMD CrossFire Technology

2 x M.2 slots (Key M) M2_1 slot supports 2242/ 2260 /2280 storage devices M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

0

1

5

10 - Supports RAID 0

1 for M.2 storage devices

Intel I219-V Gigabit LAN controller / Supports Wi-Fi 802.11 a/b/g/n/ac

dual band (2.4GHz

5GHz) up to 867 Mbps speed.

Realtek ALC1220 Codec / 7.1-Channel High Definition Audio

1 x U.2 port Support x16/x4/x16/x8 mode with the 44-lane CPU. Support x16/x4/x8/x4 modes with the 28-lane CPU. Support x8/x4/x8/x0

x8/x4/x4/x4 modes with the 16-lane CPU. Intel Dual Band Wireless-AC 8265 module (optional) The Wireless module is pre-install in the M2_3 (Key-E) slot. Supports Dual Mode Bluetooth 2.1

2.1+EDR

3.0

4.0

BLE

4.2

1 x Clear CMOS button 1 x BIOS FLASHBACK+ button

ATX

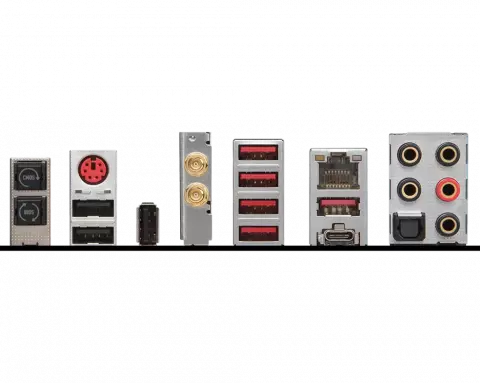

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port

- 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x 4-pin ATX 12V power connector - 8 x SATA 6Gb/s connectors - 3 x M.2 slots (Key M x2

Key E x1) - 1 x U.2 port 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Power button 1 x Reset button 1 x Multi-BIOS switch 1 x RGB LED connector 1 x Virtual RAID on CPU connector 1 x Thunderbolt Add-on Card Connector

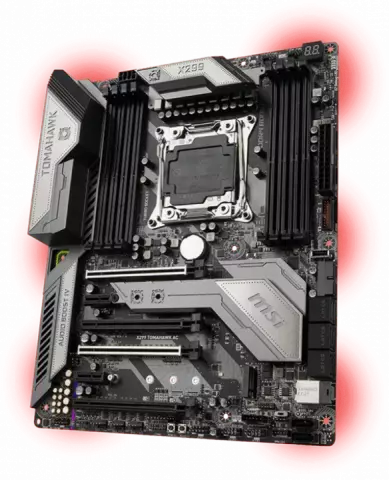

دارای قابلیت RGB
