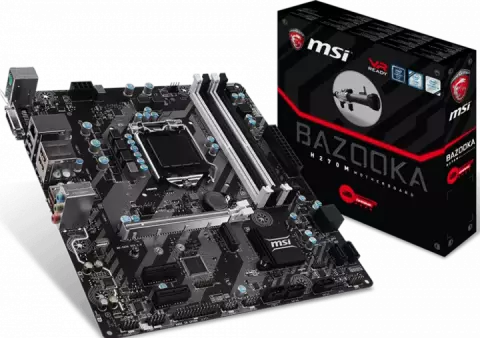

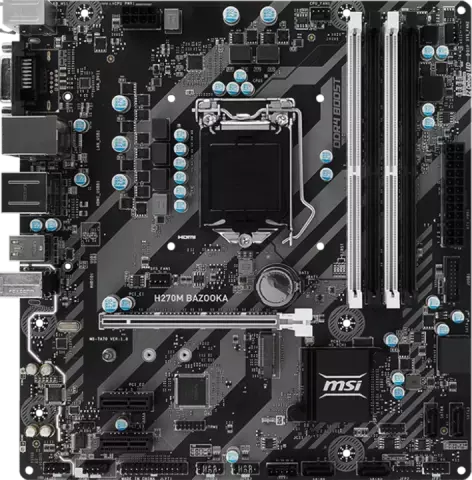

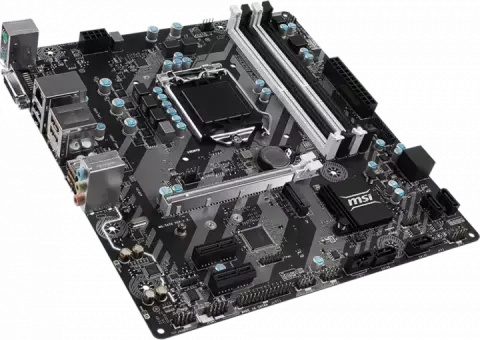

مادربرد MSI DDR4 مدل H270M BAZOOKA

LGA1151

Intel H270

Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors

and Intel® Pentium® and Celeron® processors

DDR4

7th Gen processors support DDR4 2400/ 2133 MHz 6th Gen processors support DDR4 2133 MHz

Dual channel memory architecture

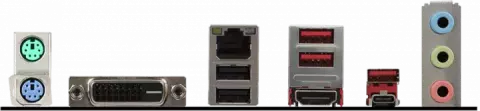

HDMI port / DVI-D port

HDMI ™ port

supports a maximum resolution of 4096x2160@24Hz

2560x1600@60Hz DVI-D port

supports a maximum resolution of 1920x1200@60Hz

1 x M.2 slot (Key M)

H270 supports RAID 0

RAID1

RAID 5 and RAID 10 for SATA storage devices

1 x Realtek® 8111H Gigabit LAN controller

Realtek® ALC887 Codec

1 x PCIe 3.0 x16 slot (supports x16 mode) 2 x PCIe 3.0 x1 slot

1

mATX

• Intel® H270 Chipset - 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel

2 ports available through the internal USB connector) ƒ- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel

4 ports available through the internal USB connector)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x RGB LED connecotr 1 x TBT connector 1 x Clear CMOS jumper
