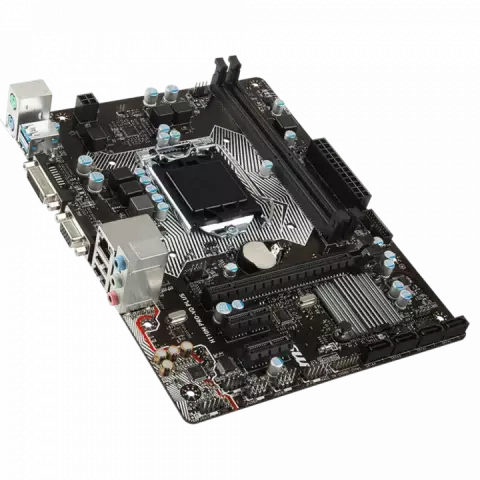

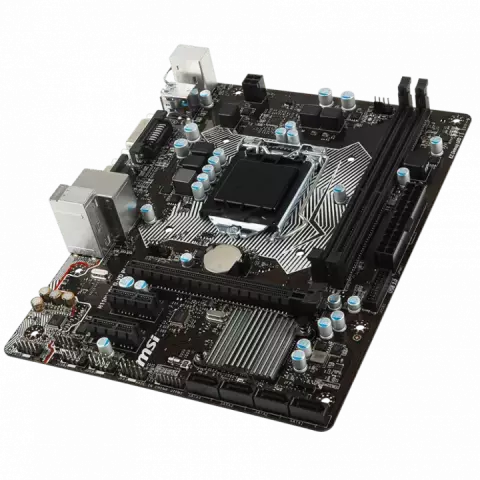

مادربرد MSI DDR4 مدل H110M PRO-VD PLUS

LGA1151

Intel H110

Core i3/i5/i7 processors

and Intel Pentium and Celeron processors

DDR4

2133 MHz

Dual channel memory architecture Supports non-ECC

un-buffered memory

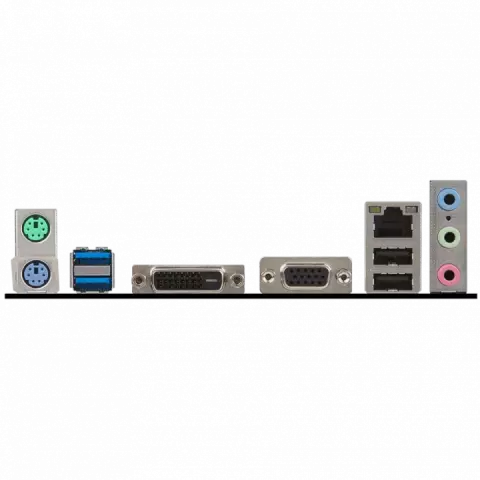

DVI-D / VGA

DVI-D port

supports a maximum resolution of 1920x1200@60Hz VGA port

supports a maximum resolution of 2048x1536@50Hz

2048x1280@60Hz

1920x1200@60Hz

1 x Realtek RTL8111H Gigabit LAN controller

Realtek ALC887 Codec

1 x PCIe 3.0 x16 slot

1 x DVI-D port

microATX

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Serial Port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
