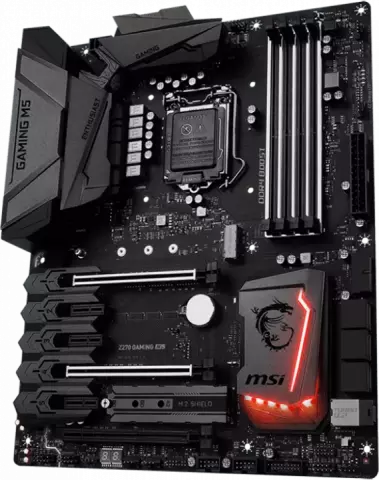

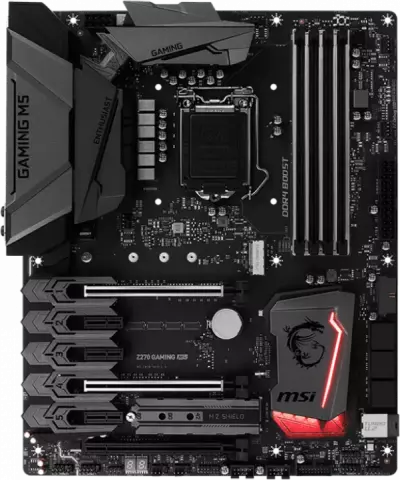

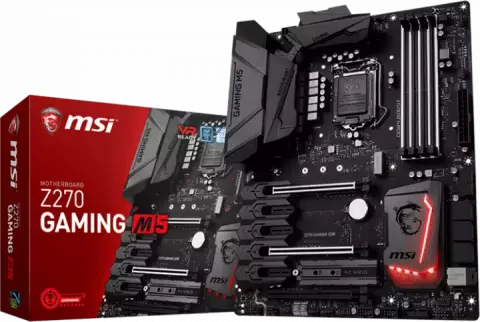

مادربرد MSI مدل GAMING Z270 M5

LGA1151

Intel Z270

Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors

and Intel® Pentium® and Celeron

7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz

Dual channel memory architecture Supports non-ECC

un-buffered memory

1 x HDMI port | 1 x DisplayPort

HDMI™ port

supports a maximum resolution of 4096x2160@30Hz(7th CPU)

4096x2160@24Hz(6th CPU) DisplayPort

supports a maximum resolution of 4096X2304@24Hz

3840X2160@60Hz

1920X1200@60Hz

Supports 2-Way NVIDIA® SLI™ Technology

Supports 3-Way AMD® CrossFire™ Technology

2x M.2 slots (Key M)

0/1/5/10

1 x KillerTM E2500 Gigabit LAN controller

Realtek® ALC1220 Codec

3 x PCIe 3.0 x16 slots (support x16/x0/x4

x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots 1 x U.2 port

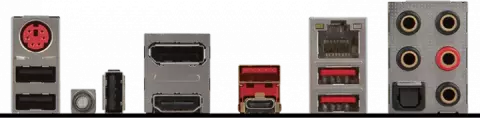

1 x USB 3.1 Gen2 Type-A port 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 Type-A ports 1 x Clear CMOS button 1 x BIOS FLASHBACK+ port

ASMedia® ASM2142 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel Intel® Z270 Chipset 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel

4 ports available through the internal USB connectors) 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel

4 ports available through the internal USB connectors)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x U.2 port 2 x M.2 slots 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial port connector 1 x RGB LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x BIOS FLASHBACK+ button 1 x 2-Digit Debug Code LED

به همراه RGB LED
