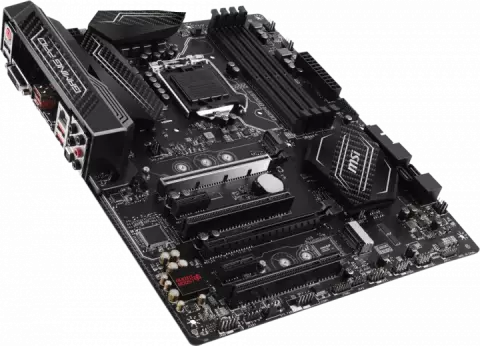

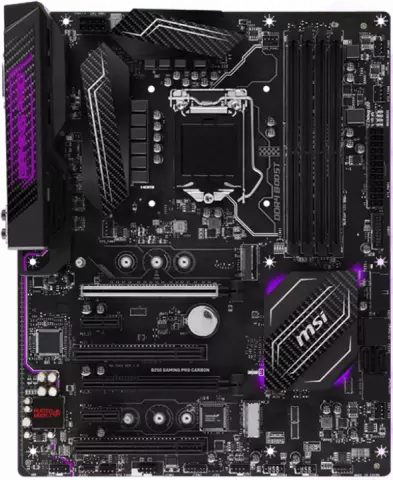

مادربرد MSI DDR4 مدل GAMING PRO CARBON B250

LGA1151

Intel B250

7th/6th Gen Intel® Core™ i3/i5/i7 processors

and Intel Pentium and Celeron processors for Socket LGA1151

DDR4

7th Gen processors support DDR4 2400/ 2133 MHz 6th Gen processors support DDR4 2133 MHz

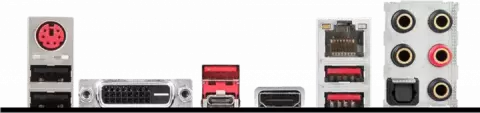

HDMI / DVI-D ports

Supports 2-Way AMD CrossFire Technology

2 x M.2 slots (Key M)

1 x Intel I219-V Gigabit LAN controller

Realtek ALC1220 Codec

2 x PCIe 3.0 x16 slots (support x16/x4 mode) 2 x PCIe 3.0 x1 slots 2 x PCI x1 slots

1

ATX

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x RGB LED connector 1 x TPM module connector 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
