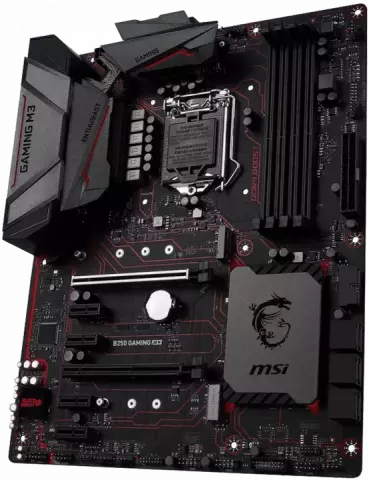

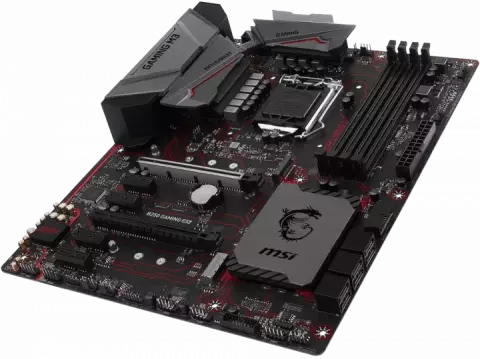

مادربرد MSI DDR4 مدل GAMING M3 B250

LGA1151

Intel B250

Intel Core i3/i5/i7 processors

and Intel® Pentium® and Celeron® processors

DDR4

7th Gen processors support DDR4 2400/ 2133 MHz 6th Gen processors support DDR4 2133 MHz

Dual channel memory architecture

DVI-D / HDMI

1 x HDMI™ port

supports a maximum resolution of 4096x2160@30Hz(7th CPU)

4096x2160@24Hz(6th CPU)

2560x1600@60Hz 1 x DVI-D port

supports a maximum resolution of 1920x1200@60Hz

• Supports 2-Way AMD® CrossFire™ Technology

Card- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices M2_2 slot supports 2242/ 2260 /2280 storage devices Intel Optane™ Memory Ready for all M.2 slots

1 x Killer™ E2500 Gigabit LAN controller

Realtek® ALC1220 Codec - 7.1-Channel High Definition Audio - Supports S/PDIF output

Supports Intel® Smart Response Technology for Intel Core™ processors (optional) Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Support up to PCIe 3.0 x4 and SATA 6Gb/s

1

ATX

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial connector 1 x Clear CMOS jumper
