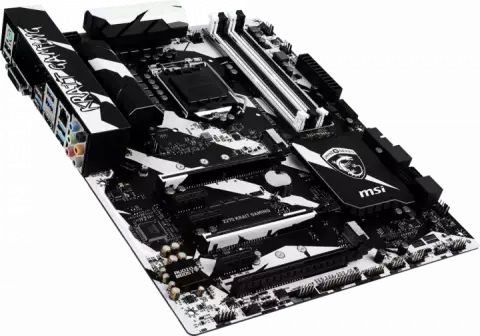

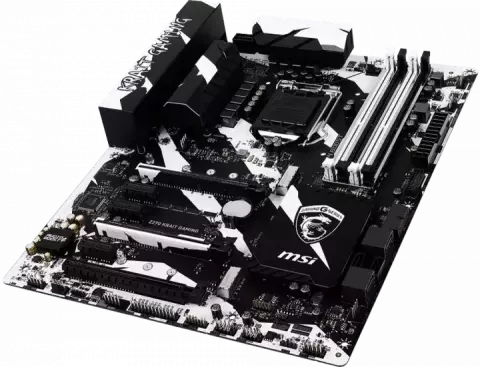

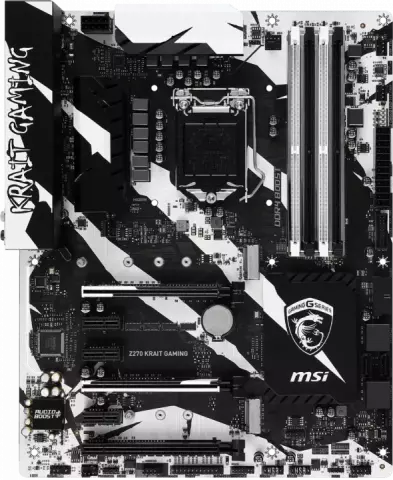

مادربرد MSI DDR4 مدل GAMING KRAIT Z270

LGA1151

Intel Z270

Supports 7th/6th Gen Intel Core i3/i5/i7 processors

and Intel Pentium and Celeron

DDR4

Supports DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz

Dual channel memory architecture Supports non-ECC

un-buffered memory

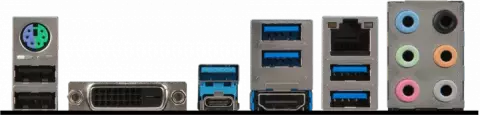

HDMI /DVI-D

Supports 2-Way NVIDIA SLI Technology

Supports 3-Way AMD CrossFire Technology

2 x M.2 slots (Key M) M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices M2_2 slot supports 2242/ 2260 /2280 storage devices Intel Optane Memory Ready for all M.2 slots

Supports RAID 0

RAID 1

RAID 5 and RAID 10 for SATA storage devices // Supports RAID 0 and RAID 1 for M.2 storage devices

1 x Intel I219-V Gigabit LAN controller

Realtek ALC1220 Codec

3 x PCIe 3.0 x16 slots (support x16/x0/x4

x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots Supports Intel® Smart Response Technology for Intel Core™ processors Supports up to PCIe 3.0 x4 and SATA 6Gb/s Supports PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card

1

ATX

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x RGB LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x Clear CMOS jumper 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors
