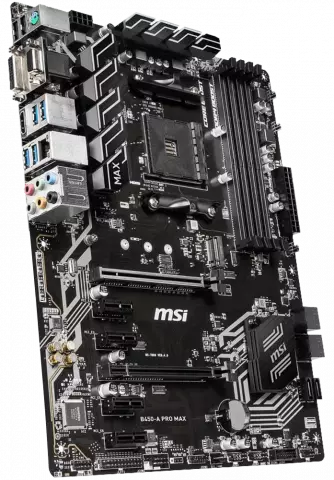

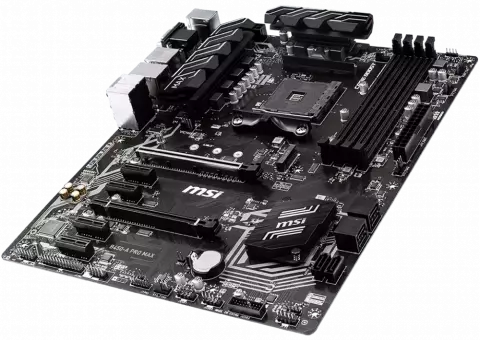

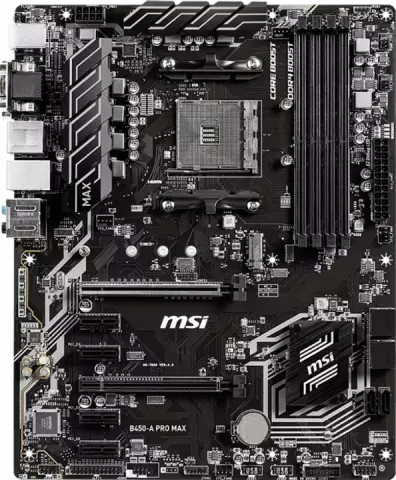

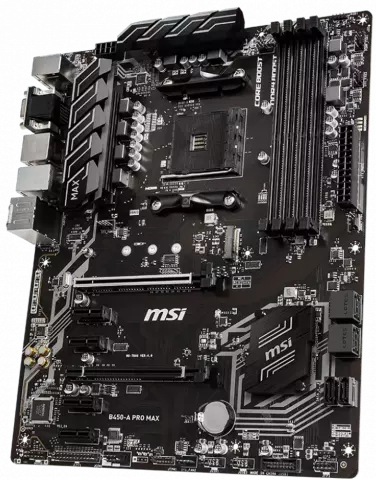

مادربرد MSI مدل B450-A PRO MAX

مبتنی بر AMD

AM4

AMD B450

سری Ryzen و Athlon

نسل 1، 2 و 3 AMD Ryzen Ryzen با Radeon Vega Graphics نسل 2 AMD Ryzen با Radeon Graphics Athlon با Radeon Vega Graphics

DDR4

4 x DDR4 memory slots

support up to 128GB ComboPI 1.0.0.3-based and above BIOS are required.1 Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)

Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)

VGA/DVI-D/HDMI

Vega Graphics

support a maximum resolution of 2048x1280 @60Hz

1920x1200 @60Hz support a maximum resolution of 1920x1200 @60Hz supports a maximum resolution of 4096x2160 @30Hz

2560x1600 @60Hz

Supports 2-Way AMD CrossFire Technology

1x M.2 slot (Key M)1

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device

1 x M.2 slot (Key M)

Supports RAID 0

RAID1 and RAID 10 for SATA storage devices

1 x Realtek 8111H Gigabit LAN controller

7.1-Channel High Definition Audio

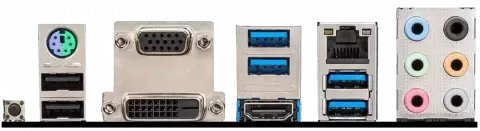

DVI-D

2 × USB 3.1 Gen2

2 × USB 3.2 Gen1

2 × USB 2.0

Flash BIOS Button

ATX

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 5050 RGB LED strip 12V connector
