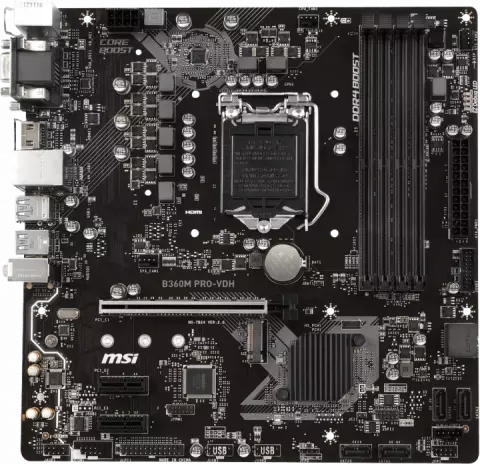

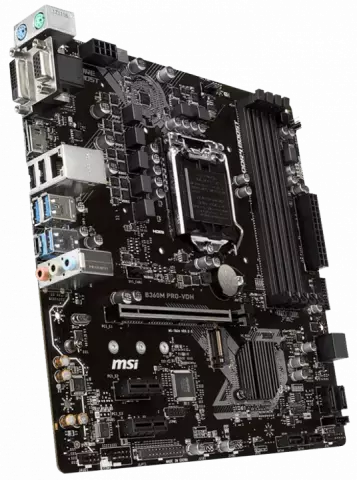

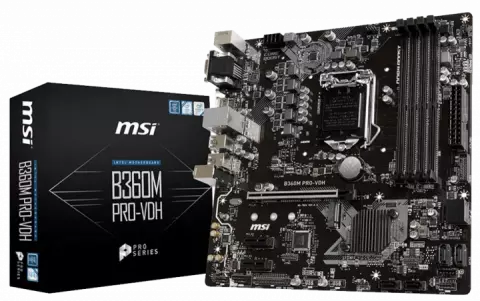

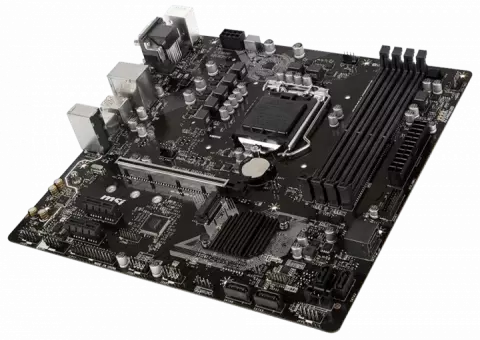

مادربرد MSI DDR4 مدل B360M PRO-VDH

LGA1151 v2

Intel B360

Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket

DDR4

2666/ 2400/ 2133 MHz

1 x VGA port

supports a maximum resolution of 2048x1536@50Hz

2048x1280@60Hz

1920x1200@60Hz 1 x DVI-D port

supports a maximum resolution of 1920x1200@60Hz 1 x HDMI port 1.4

supports a maximum resolution of 4096x2160@30Hz

1 x M.2 slot (Key M)

Realtek RTL8111H

Realtek ALC887

2 x PCIe 3.0 x1 slots

1 x DVI-D

microATX

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 1 x Parallel port connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Thunderbolt add-on card connector 1 x Clear CMOS jumper
