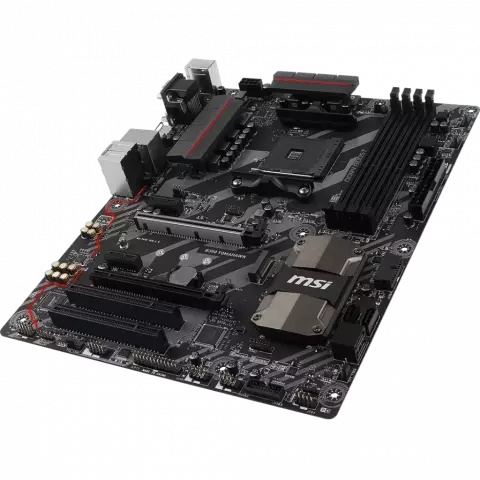

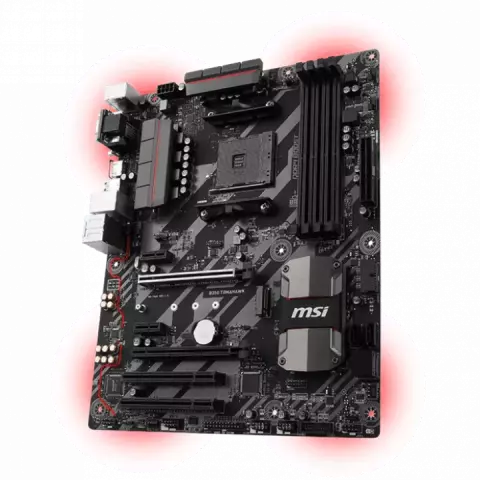

مادربرد MSI DDR4 مدل B350M TOMAHAWK

AM4

AMD B350

AMD RYZEN series processors and 7th Gen A-series/ Athlon processors

DDR4

1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz

Dual channel memory architecture

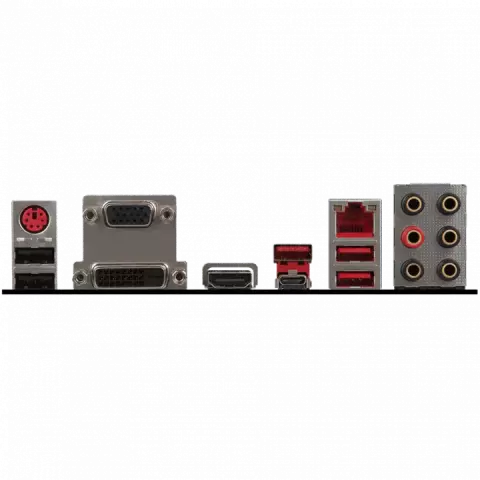

VGA

DVI-D

HDMI

VGA port

supports a maximum resolution of 2048x1280@60HZ (RB) DVI-D port

supports a maximum resolution of 1920x1200@60Hz HDMI port

supports a maximum resolution of 4096x2160@24Hz

Raid 0

1

10

Realtek 8111H Gigabit LAN controller

Realtek ALC892 Codec

1 x PCIe 3.0 x16 slot 1 x PCIe 2.0 x16 slot

1 x DVI-D port

ATX

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x 4-pin RGB LED strip connector 1 x Serial port connector 1 x Parallel port connector 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

دارای قابلیت RGB
