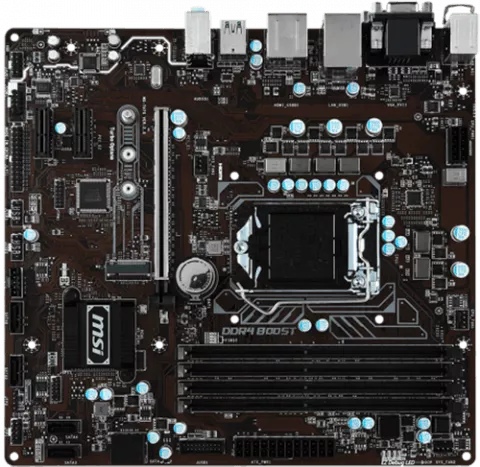

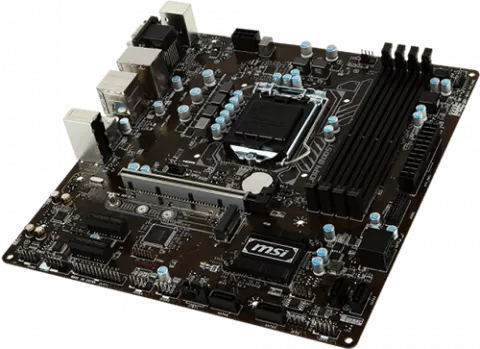

مادربرد MSI DDR4 مدل B250M PRO VDH

LGA1151

Intel B250

Supports 7th / 6th Gen Intel® Core™ i3/i5/i7 processors and Intel® Pentium® and Celeron® processors

DDR4

7th Gen processors support DDR4 2400/ 2133 MHz 6th Gen processors support DDR4 2133 MHz

Dual channel memory architecture

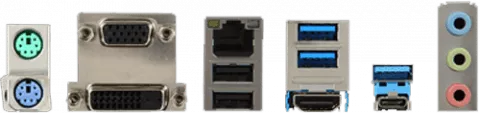

VGA / DVI-D / HDMI

1 x M.2 slot (Key M)

1 x Realtek® 8111H Gigabit LAN controller

Realtek® ALC887 Codec

2 x PCIe 3.0 x1 slots 1 x PCIe 3.0 x16 slot (supports x16 mode)

1

mATX

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x RGB LED connecotr 1 x TBT connector 1 x Clear CMOS jumper 1 x Serial port connector 1 x Parallel port connector
