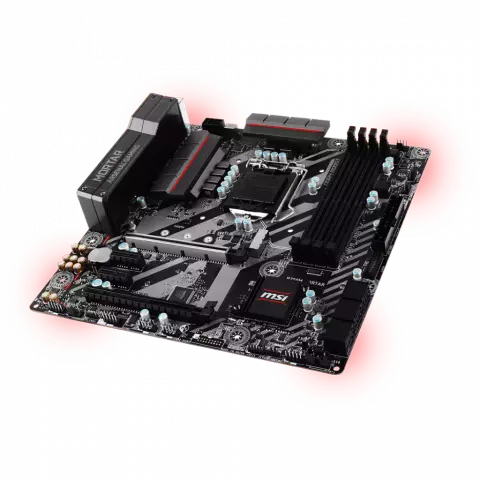

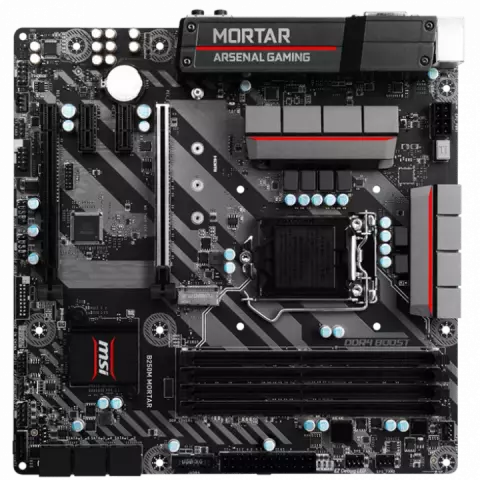

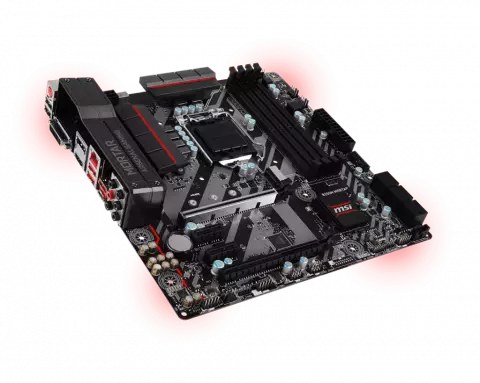

مادربرد MSI DDR4 مدل B250M MORTAR

LGA1151

Intel B250

7th/6th Gen Intel Core i3/i5/i7 processors

and Intel Pentium and Celeron processors

DDR4

2400/ 2133 MHz

Dual channel memory architecture

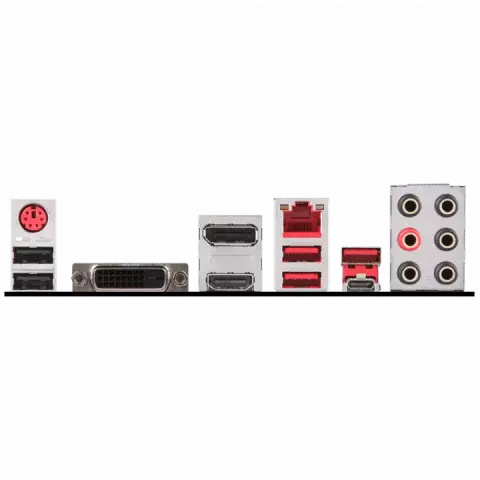

HDMI / DisplayPort / DVI-D

DVI-D port

supporting a maximum resolution of 1920x1200@60Hz DisplayPort

supports a maximum resolution of 4096x2304@24Hz

2560x1600@60Hz

3840x2160@60Hz

1920x1200@60Hz HDMI port

supports a maximum resolution of 4096x2160@30Hz(7th CPU)

4096x2160@24Hz(6th CPU)

2560x1600@60Hz

Supports 2-Way AMD CrossFire Technology

1 x M.2 slot (Key M)

1 x Intel I219-V Gigabit LAN controller

Realtek ALC892 Codec

2 x PCIe 3.0 x16 slots (support x16/x4 mode)

1 x DVI-D port

microATX

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x M.2 slot 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial port connector 1 x RGB LED connector 1 x TPM module connector 1 x TBT connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

دارای قابلیت RGB
