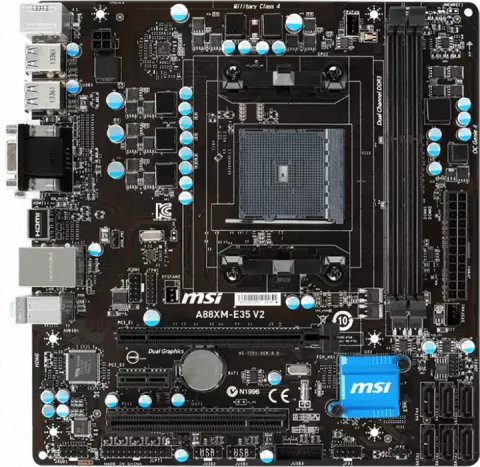

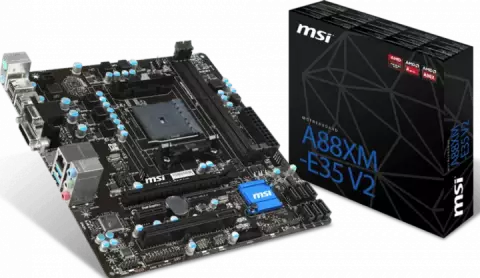

مادربرد MSI DDR3 مدل A88XM-E35 V2

FM2+

AMD A88X

AMD® A-Series/Athlon™ Processors* for the FM2+ package Also support FM2 A-Series/Athlon™ Processors

DDR3

DDR3 1333/ 1600/ 1866/ 2133*(*OC) MHz

Dual channel memory architecture Supports non-ECC

un-buffered memory

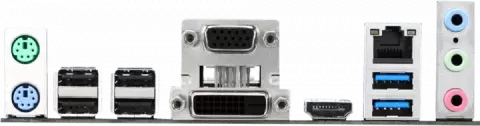

1 x DVI-D port | 1 x VGA port | 1 x HDMI port

1 x VGA port

supporting a maximum resolution of 1920x1200 @ 60Hz

24bpp 1 x DVI-D port

supporting a maximum resolution of 2560x1600@60Hz

24bpp/ 1920x1200 @ 60Hz

24bpp 1 x HDMI port

supporting a maximum resolution of 4096x2160@24Hz

36bpp*/ 3840x216

0/1/5/10

Realtek® RTL8111G

Realtek® ALC887

1 PCI Express 3.0 x16 slot

1

microATX

1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports) 1 x 4-pin CPU fan connector 1 x
