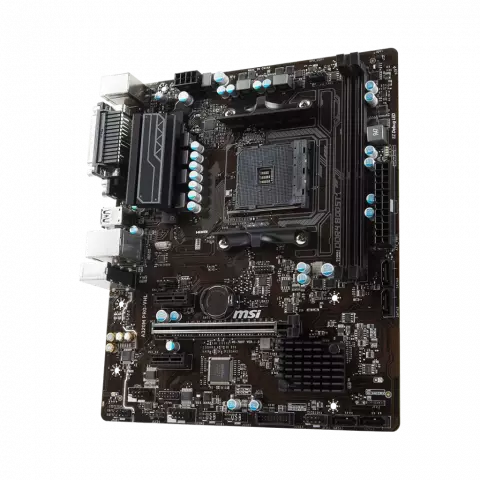

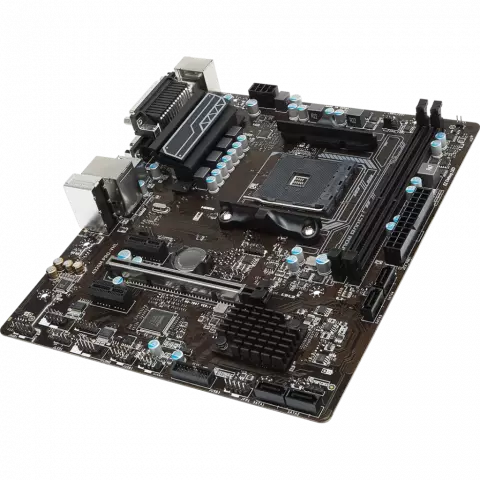

مادربرد MSI DDR4 مدل A320M PRO-VHL

AM4

AMD A320

AMD RYZEN series processors and 7th Gen A-series/ Athlon processors

DDR4

1866/2133/2400/2667/2933(OC)/3200(OC) Mhz

Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory

HDMI / VGA

HDMI port

supports a maximum resolution of 4096x2160@24Hz VGA port

supports a maximum resolution of 2048x1280@60Hz

1920x1200@60Hz

Raid 0

1

10

Realtek 8111H Gigabit LAN controller

Realtek ALC887 Codec

1 x PCIe 3.0 x16 slots

mATX

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Clear CMOS jumper
