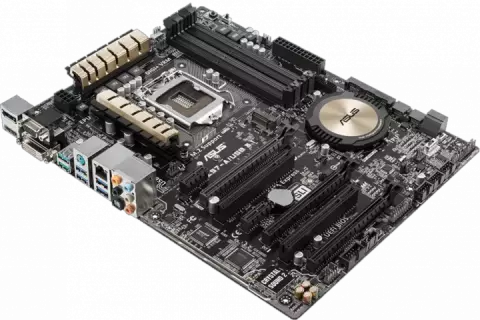

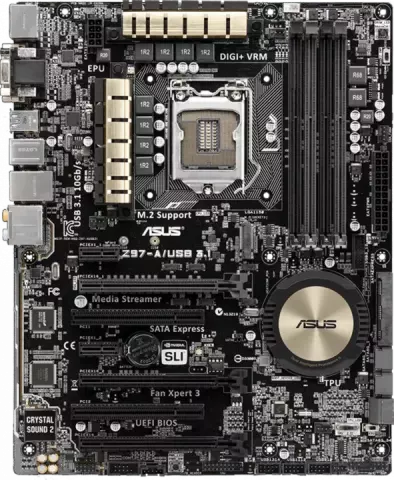

مادربرد Asus DDR3 مدل Z97-A/USB 3.1

LGA1150

Intel Z97

Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR3

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

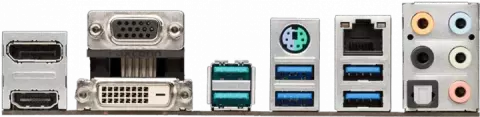

HDMI/DVI-D/RGB/DisplayPort ports

Integrated Graphics Processor

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports DisplayPort with max. resolution 4060 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz

1 x M.2 Socket 3

Support Raid 0

1

5

10

Intel® I218V

1 x Gigabit LAN

Dual interconnect between the Integrated Media Access Controller

1 x PCIe 2.0 x16 (x2 mode) *1

1

2 x USB 3.1 (teal blue)

ATX

Intel® Z97 chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel

blue

2 at mid-board) Intel® Z97 chipset : 6 x USB 2.0/1.1 port(s) (6 at mid-board) ASMedia® USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) (2 at back panel

teal blue)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x SATA Express connector:

compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key

type 2260/2280 devices 1 x TPM header 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Clear CMOS jumper(s)

5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 3

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. ASUS 5X Protection : - ASUS DIGI+ VRM - 8 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS TPU : - Auto Tuning - GPU Boost - TPU switch ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design - CPU Power Utility ASUS Exclusive Features : - Remote GO! - AI Suite 3 - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2 ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Media Streamer Turbo App Fan Xpert 3
