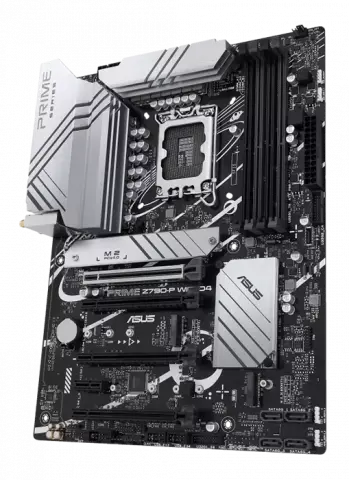

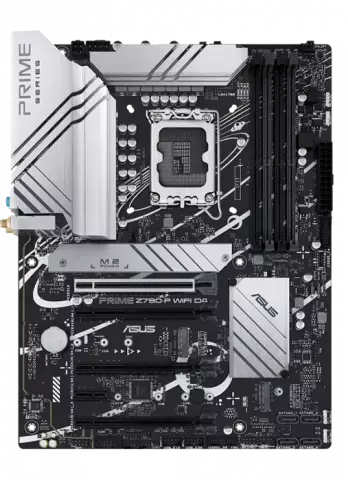

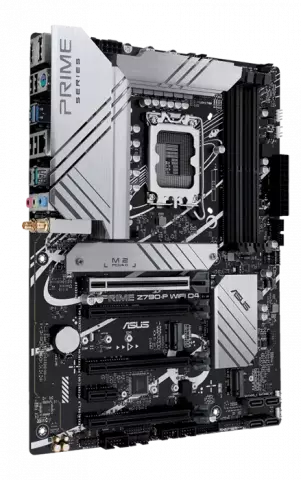

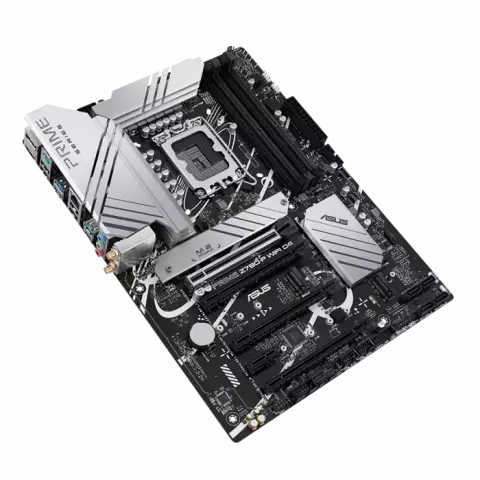

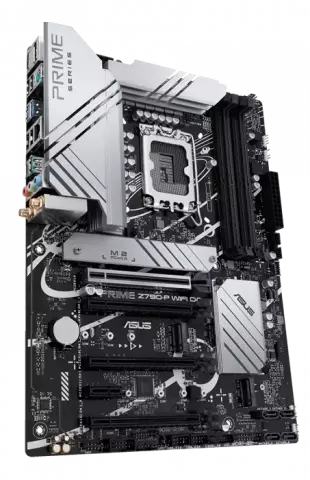

مادربرد ASUS مدل Z790-P WIFI D4

مبتنی بر Intel

LGA1700

Intel Z790

نسل دوازدهم و سیزدهم Intel

نسل چهاردهم Intel

سری Core نسل سیزدهم Intel، نسل چهاردهم Intel سری Core، سری Pentium Gold، سری Celeron، نسل دوازدهم Intel

15

DDR4

5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC

Un-buffered Memory

دو کاناله

OptiMem II

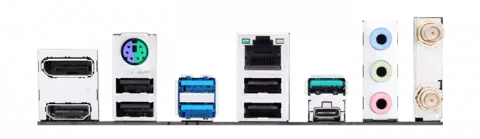

1xDisplayPort 1x HDMI

رزولوشن HDMI 2.1 : 4K با فرکانس 60 هرتز

رزولوشن DisplayPort 1.4 : 4K با فرکانس 60 هرتز

Intel 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

0/1/5/10

Realtek 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

1x Realtek 2.5Gb Ethernet

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

v5.2

1 * USB Type-C 3.2 Gen 2x2

1 × USB 3.2 Gen2

2 × USB 3.2 Gen1

4 × USB 2.0

ATX

1x USB 3.2 Gen 2 connector (supports USB Type-C) 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2x USB 2.0 headers support 4 additional USB 2.0 ports

1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 1x 4-pin +12V Power connector 3 x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x SPI TPM header (14-1pin) 1x 20-5pin System Panel header 1x Thunderbolt (USB4) Header

ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync ASUS Exclusive Software UEFI BIOS
