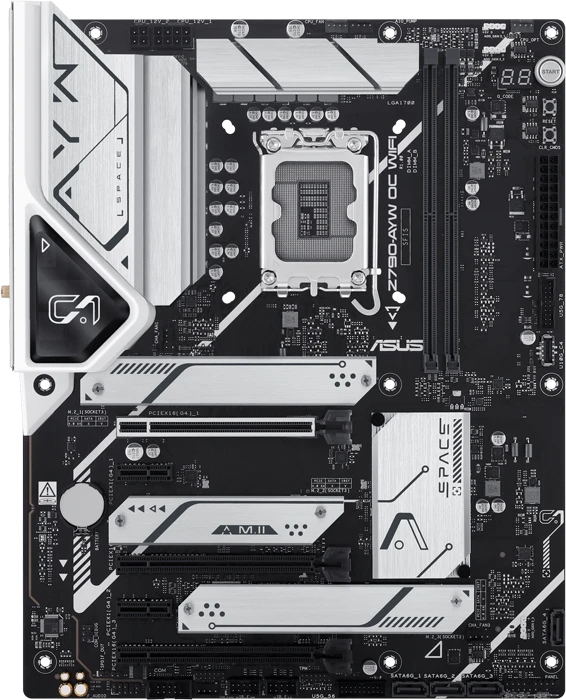

مادربرد ASUS مدل Z790-AYW OC WiFi

مبتنی بر Intel

LGA1700

Intel Z790

نسل دوازدهم و سیزدهم Intel

نسل چهاردهم Intel

سری Core نسل سیزدهم Intel، نسل چهاردهم Intel سری Core، سری Pentium Gold، سری Celeron، نسل دوازدهم Intel

DDR5

8200+(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC

دو کاناله

OptiMem II

1x HDMI

رزولوشن HDMI 2.1 : 4K با فرکانس 60 هرتز

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

SATA RAID 0/1/5/10

Realtek 7.1 Surround Sound High Definition Audio CODEC*

7.1

1 x Realtek 2.5Gb Ethernet

Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

v5.3

USB Type-C 3.2 Gen 2 x 1

1 × USB 3.2 Gen2

2 × USB 3.2 Gen1

ATX

1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 3 x Addressable Gen 2 headers 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x Clear CMOS button 1 x Reset button 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ (USB4®) Header

Extreme OC Kit ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync
