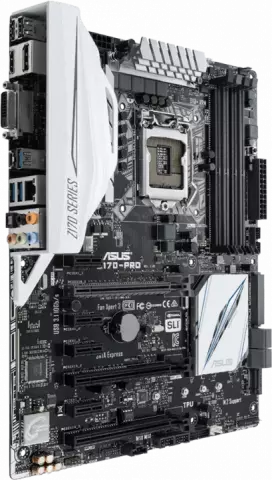

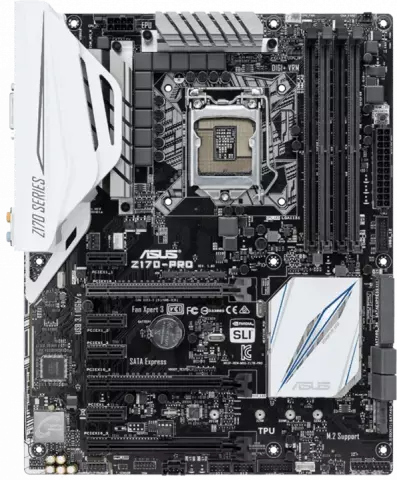

مادربرد Asus DDR4 مدل Z170-PRO

LGA1151

Intel Z170

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR4

DDR4 3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

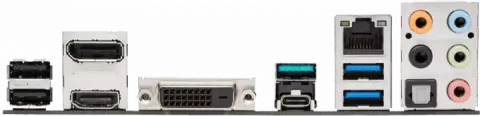

HDMI/DVI-D/DisplayPort ports

Integrated Graphics Processor

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz

Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology

1 x M.2 x4 Socket 3

1 x SATA Express port

Support Raid 0

1

5

10

Intel® I219V

1 x Gigabit LAN Controller(s)

Dual interconnect between the Integrated Media Access Controller

Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1

1

1 x 8-channel Audio I/O

ATX

Intel® Z170 chipset : 6 x USB 3.0/2.0 port(s) (2 at back panel

blue

4 at mid-board) Intel® Z170 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel

4 at mid-board) Intel® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel

Type-C) Intel® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel

teal blue

Type-A)

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector:

Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Water Pump header (4-pin) 1 x 14-1 pin TPM connector

OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 3

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 8 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS TPU : - Auto Tuning - GPU Boost ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design ASUS Exclusive Features : - Remote GO! - MemOK! - AI Suite 3 - Ai Charger - M.2 & SATA Express - Anti-Surge - Front Panel USB 3.0 Support - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 3 - EZ XMP ASUS Exclusive Features - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer - HyStream ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 3 ASUS EZ DIY : - DirectKey - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Media Streamer Turbo App Fan Xpert 3
