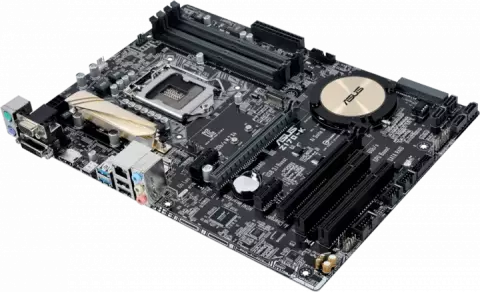

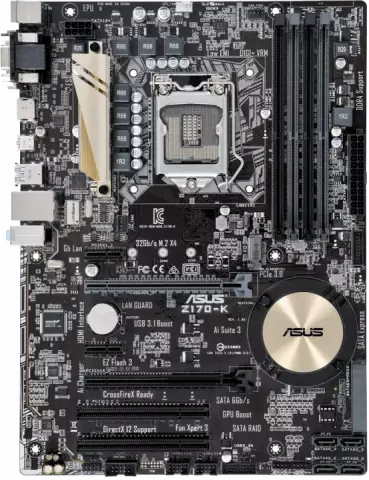

مادربرد Asus DDR4 مدل Z170-K

LGA1151

Intel Z170

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR4

DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

non-ECC

un-buffered memory

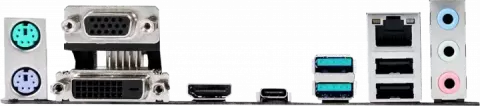

HDMI/DVI-D/RGB ports

Integrated Graphics Processor

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD Quad-GPU CrossFireX™ Technology

1 x M.2 Socket 3

1 x SATA Express port

Support Raid 0

1

5

10

Realtek® RTL8111H

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC *2

Supports : Jack-detection

Front Panel Jack-retasking

1

1 x USB 5Gb/s port(s) Type-C ( support 3A power output )

ATX

ASMedia® USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) (2 at back panel

teal blue) Intel® Z170 chipset : 1 x USB 5Gb/s port(s) port(s) (1 at back panel

Type-C

Reversible

Support 3A power output) Intel® Z170 chipset : 4 x USB 3.0/2.0 port(s) (Type-A

4 at mid-board) Intel® Z170 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel

Type-A

4 at mid-board)

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: gray

Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key

type 2242/2260/2280 devices 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 7 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger+ - M.2 & SATA Express - Anti-Surge - Low EMI Solution - USB 3.1 Boost - Disk Unlocker - Mobo Connect - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Media Streamer
