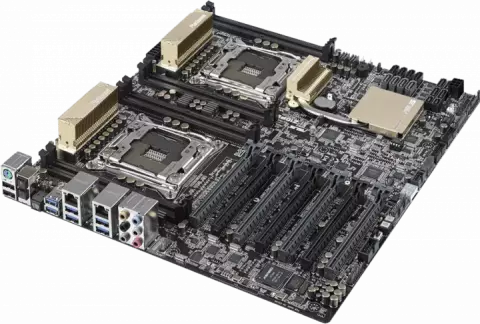

مادربرد Asus DDR4 مدل Z10PE-D8 WS

LGA2011-v3

Intel C612

Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family | Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family

DDR4

DDR4 2400/2133/1866/1600/1333 MHz

RDIMM

LR-DIMM Memory | Quad Channel Memory Architecture

VGA port

ASpeed AST2400 32MB

Supports VGA with max. resolution 1920 x 1200 @ 60 Hz

Supports NVIDIA® 4-Way SLI™ Technology

Supports AMD 4-Way CrossFireX Technology

1 x M.2 Socket 3

1 x SATA Express port

gray

Support Raid 0

1

5

10

Intel® I210-AT

2 x Gigabit LAN Controller(s)

Realtek® ALC1150 8-Channel High Definition Audio CODEC

4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) | 2 x PCIe 3.0/2.0 x16 (dual x16) | 1 x PCIe 3.0/2.0 x16 (dual x8)

1 x USB BIOS Flashback Button(s) | 1 x Q-Code Logger button | 1 x 8-channel Audio I/O

EEB

Intel® C612 chipset : 4 x USB 3.0/2.0 port(s) (4 at back panel

) Intel® C612 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel

2 at mid-board) ASMedia® USB 3.0 controller : 6 x USB 3.0/2.0 port(s) (2 at back panel

blue

4 at mid-board)

1 x AAFP connector 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x SATA Express connector: gray

Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 1 x TPM connector(s) 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) (2 x 4 -pin) 7 x Chassis Fan connector(s) (7 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x RAID key header(s) 1 x VGA connector(s) 1 x AUX panel header(s) 1 x SMBus header(s) 1 x System panel(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 1 x Serial Port header 1 x ASMB8-iKVM connector 1 x 6-pin EATX 12V_3 Power connector

ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design - Industry leading Digital 2 Phase DRAM Power Design ASUS Exclusive Features : - Front Panel USB 3.0 Support ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-Slot - ASUS Q-DIMM
