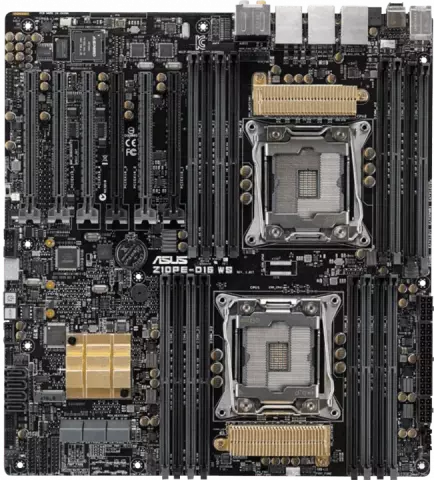

مادربرد Asus DDR4 مدل Z10PE-D16 WS

Intel C612 PCH

Build in Intel Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors Intel Socket 2011-v3 for Intel Xeon processor E5-1600 v4 product family Intel Socket 2011-v3 for Intel Xeon processor E5-2600 v4 product family

DDR4

1866/2400/2133/1600 MHz

RDIMM

LR-DIMM Memory Quad Channel Memory Architecture

VGA port

Supports VGA with max. resolution 1920 x 1200 @ 60 Hz

Supports NVIDIA® 3-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology

1 x M.2 Socket 3

black

Support Raid 0

1

5

10

Intel I210-AT

2 x Gigabit LAN Controller(s)

1 x Management LAN

Realtek ALC1150 8-Channel High Definition Audio CODEC

1 x USB BIOS Flashback® Button(s) 1 x Q-Code Logger button 1 x Management LAN

EEB

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x AAFP connector 1 x M.2 Socket 3 1 x TPM connector(s) 1 x COM port(s) connector(s) 10 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) (2 x 4 -pin) 7 x Chassis Fan connector(s) (7 x 4 -pin) 1 x S/PDIF out header(s) 2 x 8-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x RAID key header(s) 1 x VGA connector(s) 1 x AUX panel header(s) 1 x SMBus header(s) 2 x System panel(s) (Q-Connector) 1 x Chassis Intrusion connector(s)* 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 2 x Serial Port header 1 x ASMB8-iKVM connector

ASUS Digital Power Design : Industry leading Digital 7 Phase Power Design Industry leading Digital 2 Phase DRAM Power Design ASUS Exclusive Features : Front Panel USB 3.0 Support ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-pipe solution ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 ASUS Q-Design : ASUS Q-Shield ASUS Q-Code ASUS Q-Slot ASUS Q-DIMM
