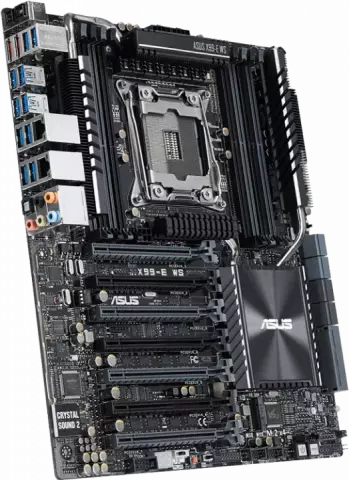

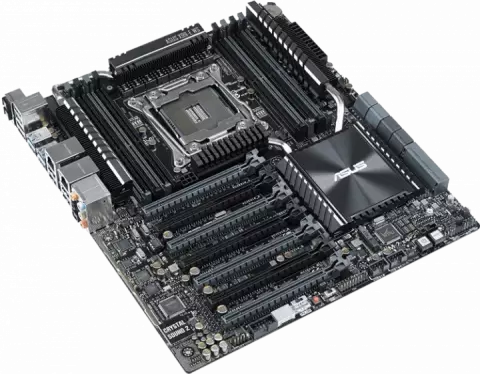

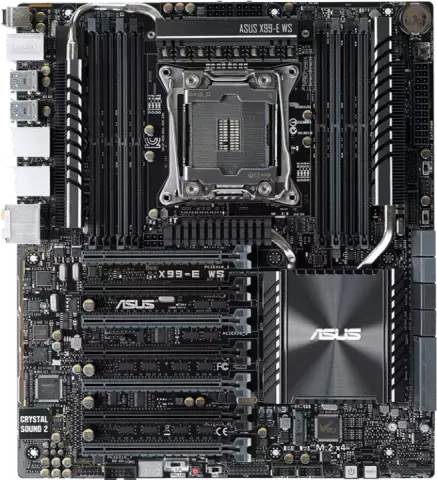

مادربرد Asus DDR4 مدل X99-E WS

LGA2011-v3

Intel X99

Core i7 / Core i7 X-Series Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

8 x DIMM

Max. 128GB

DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC

Un-buffered Memory 8 x DIMM

Max. 128GB

DDR4 2400/2133/1866 MHz ECC

Un-buffered Memory 8 x DIMM

Max. 256GB

DDR4 2400/2133/1866 MHz ECC

Register Memory Quad Channel Memory Architecture

Supports NVIDIA 4-Way SLI Technology

Supports AMD 4-Way CrossFireX Technology

1 x M.2 x4 Socket 3

gray

with M Key

type 2260/2280 storage devices support (PCIE mode)

1 x SATA Express port

gray

Compatible with 2 x SATA 6.0 Gb/s ports

Raid 0

1

5

10

Intel I210-AT

1 x Gigabit LAN Controller(s) Intel I218LM

1 x Gigabit LAN

Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2

40-Lane CPU 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) 28-Lane CPU 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) ASMedia SATA 6Gb/s controller : 2 x eSATA 6Gb/s port(s)

Compatible with 2 x SATA 6.0 Gb/s ports

2 x eSATA 1 x USB BIOS Flashback Button(s) 1 x Q-Code Logger button

CEB

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x SATA Express connector: gray

Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key

type 2260/2280 devices 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 2 x 8-pin EATX 12 V Power connector 1 x 6-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x TPU switch(es) 1 x CPU/DRAM overvoltage jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 1 x 3-pin CHASSIS(Chassis intrusion) connector 1 x COM port header

5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 3

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. ASUS TPU : - Auto Tuning - GPU Boost - TPU switch ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design - Industry leading Digital 4 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - MemOK! - AI Suite 3 - Ai Charger+ - USB Charger+ - M.2 & SATA Express - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2 Remote Entertainment - Media Streamer ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Media Streamer Special Memory O.C. Design Turbo App Fan Xpert 3
