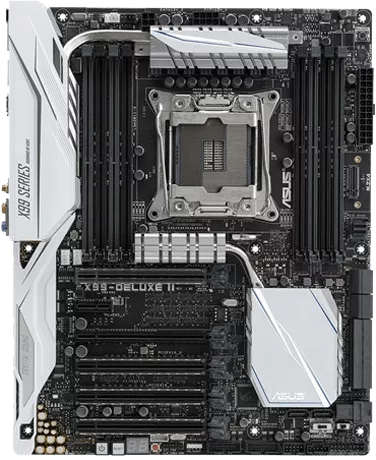

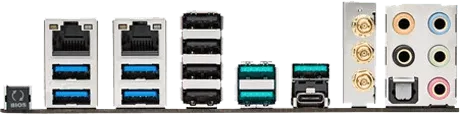

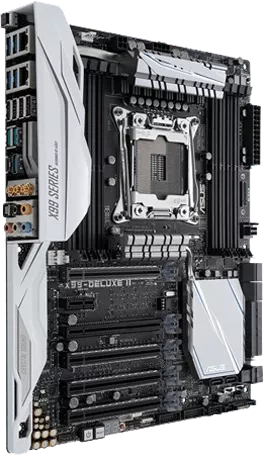

مادربرد Asus DDR4 مدل X99-DELUXE II

LGA2011-v3

Intel X99

Core i7 Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Max Technology

DDR4

3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

Non-ECC

Un-buffered Memory Quad Channel Memory Architecture

Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology

1 x M.2 Socket 3

with vertical M Key design

type 2242/2260/2280 storage devices support (Support PCIE SSD only)

1 x SATA Express port

Compatible with 2 x SATA 6.0 Gb/s ports

Support Raid 0

1

5

10

Intel I218V

1 x Gigabit LAN Controller(s) Intel I211-AT

1 x Gigabit LAN Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance

Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

40-Lane CPU 4 x PCIe 3.0/2.0 x16 (x16

x16/x16

x16/x16/x8

x8/x8/x8/x8) 1 x PCIe 2.0 x16 (x1 mode) 1 x PCIe 2.0 x16 (max at x4 mode) 1 x PCIe 2.0 x1 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16

x16/x8

x8/x8/x8) 1 x PCIe 2.0 x16 1 x PCIe 2.0 x16 (max at x4 mode) 1 x PCIe 2.0 x1 2 x U.2 port

support PCIe 3.0 x4 NVM Express storage Supports Intel Smart Response Technology

1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x AAFP connector 1 x Aura RGB Strip Header 1 x SATA Express connector:

1 x M.2 Socket 3 with vertical M Key design

type 2242/2260/2280 storage devices support (Support PCIE SSD only) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x SLI/CFX switch (2/3-WAY adjustments) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x CPU/DRAM overvoltage jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Water Pump header (4-pin) 1 x High AMP Fan header (4-pin)

5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo Core App ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 8 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS EPU : ASUS Wi-Fi GO! - Wi-Fi GO! Function: Cloud GO!

Remote Desktop

Remote Keyboard & Mouse

File Transfer ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger+ - M.2 & SATA Express - Anti-Surge - USB 3.1 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 3 - EZ XMP ASUS Exclusive Features - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer - HyStream ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - ASUS Fan Xpert 4 ASUS EZ DIY : - DirectKey - Precision Tweaker 2 - ASUS CrashFree BIOS - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Key Express
