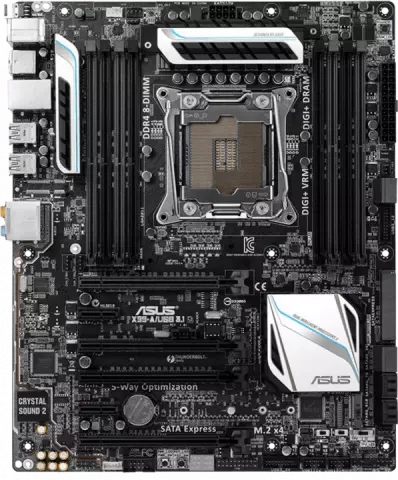

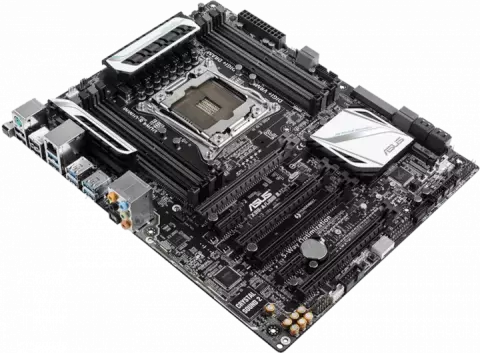

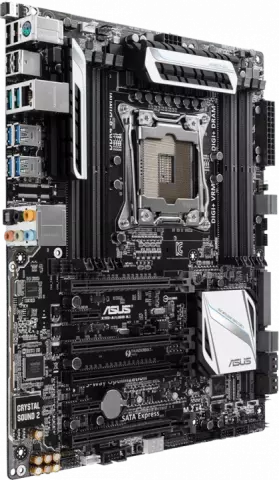

مادربرد Asus DDR4 مدل X99-A/USB 3.1

LGA2011-v3

Intel X99

Intel® Socket 2011-v3 Core™ i7 Processors

DDR4

DDR4 3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

non-ECC

un-buffered memory

Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology

1 x M.2 Socket 3

1 x SATA Express port

Support Raid 0

1

5

10

Intel® I218V

1 x Gigabit LAN Controller(s)

Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2

3 x PCIe 3.0/2.0 x16 (x16

x16/x16

x16/x16/x8) 3 x PCIe 3.0/2.0 x16 ( x16

x16/x8

x16/x8/x4) 1 x PCIe 2.0 x16 (x4 mode) 2 x PCIe 2.0 x1 (x1 mode)

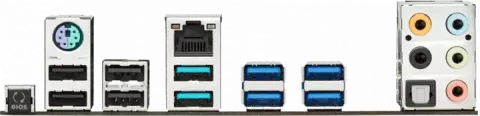

2 x USB 3.1 (teal blue) 1 x USB BIOS Flashback Button(s)

ATX

Intel® X99 chipset : 5 x USB 3.0/2.0 port(s) (1 at back panel

4 at mid-board) Intel® X99 chipset : 8 x USB 2.0/1.1 port(s) (4 at back panel

4 at mid-board) ASMedia® USB 3.0 controller : 3 x USB 3.0/2.0 port(s) (3 at back panel

) ASMedia® USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) (2 at back panel

teal blue)

1 x AAFP connector 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: gray

1 x M.2 Socket 3 with M Key design

type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 x TPM connector(s) 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x System panel(s) (Q-Connector) 1 x Chassis Intrusion connector(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x CPU/DRAM overvoltage jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector

5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 3

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. ASUS 5X Protection : - ASUS DIGI+ VRM - 8 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS TPU : - Auto Tuning - GPU Boost - TPU switch ASUS EPU : - EPU switch ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design - Industry leading Digital 4 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - Remote GO! - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger+ - USB Charger+ - M.2 & SATA Express - Anti-Surge - Onboard Button : Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2 Interactive HomeCloud - Media Streamer ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS USB BIOS Flashback - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Turbo App Fan Xpert 3
