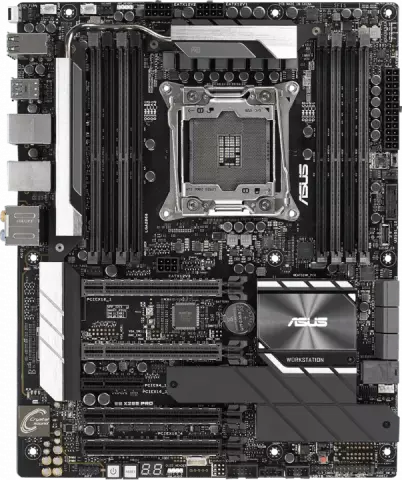

مادربرد Asus DDR4 مدل WS X299 PRO

LGA2066

Intel X299

Core X-Series Processors

DDR4

Intel Core X-series Processors (6-core above) : 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz Intel Core X-series Processors (4-core) : 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz

حداکثر حافظه رم قابل پشتیبانی (6 هسته به بالا): 128 گیگابایت حداکثر حافظه رم قابل پشتیبانی (4 هسته): 64 گیگابایت Non-ECC

Un-buffered Memory

Supports NVIDIA 3-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

0

1

5

10

Intel I210-AT

2 x Gigabit LAN Controller(s)

Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3

44-Lane CPU 2 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) 28-Lane CPU 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) 16-Lane CPU 1 x PCIe 3.0 x16 (x8 mode) 2 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode)

1 x USB BIOS Flashback Button(s)

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x Aura Addressable Strip Header(s) 1 x AAFP connector 1 x Aura RGB Strip Header 2 x M.2 Socket 3 1 x TPM header 6 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 2 x CPU Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 6-pin EZ_PLUG Power connector(s) 1 x EZ XMP switch 1 x Front panel connector(s) 1 x AUX panel header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Rear fan 1 x COM port header 1 x U.2 Connector (support U.2 NVMe device) 1 x USB 3.1 Gen 2 front panel connector 1 x PANEL2 1 x PUMP Fan connector 1 x PANEL1

OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App TPU Fan Xpert4 Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention ASUS ESD Guards - Enhanced ESD protection ASUS EPU : EPU ASUS Digital Power Design : Industry leading Digital 8 Phase CPU Power Design Industry leading Digital 2 Phase DRAM Power Design AURA : Aura RGB Strip Headers Aura Addressable Strip Header(s) ASUS Exclusive Features : AI Suite 3 Ai Charger+ Turbo LAN Crystal Sound 3 ASUS EZ DIY : ASUS CrashFree BIOS ASUS EZ Flash ASUS USB BIOS Flashback® Multi-language BIOS ASUS Q-Design : ASUS Q-Shield ASUS Q-Code ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Asus Control Center (ACC) IT management software supported
