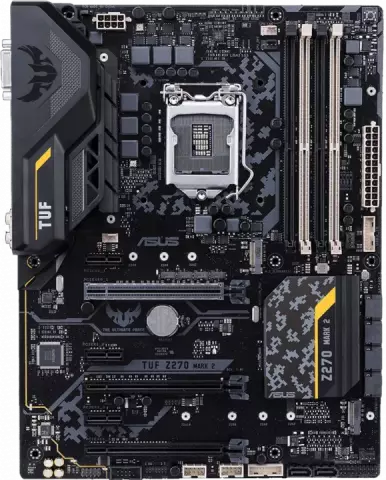

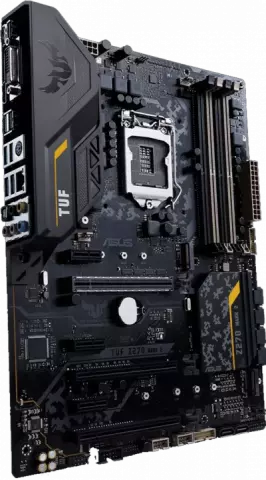

مادربرد Asus DDR4 مدل TUF Z270 MARK 2

LGA1151

Intel Z270

Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU

DDR4

DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

Dual Channel Memory Architecture Non-ECC

Un-buffered Memory

HDMI / DVI-D ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD CrossFireX™ Technology

1 x M.2 Socket 3

with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (PCIE mode only)

Raid 0

1

5

10

Intel® I219V

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1 x PCIe 3.0/2.0 x16 (x2 mode)

1

ATX

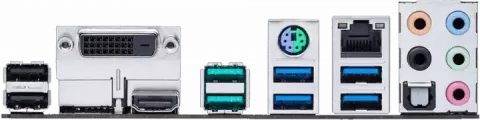

ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel

+teal blue

Type-A) Intel® Z270 Chipset : 8 x USB 3.0 port(s) (4 at back panel

+blue

4 at mid-board) Intel® Z270 Chipset : 6 x USB 2.0 port(s) (2 at back panel

4 at mid-board)

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 So

TUF Features: TUF ENGINE! Power Design : 4 +2 Digital Phase Power Design TUF Components (Choke

Cap. & MOSFET; certified by military-standard) ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : Thermal Radar Core+ Safe & Stable! Guardian A
