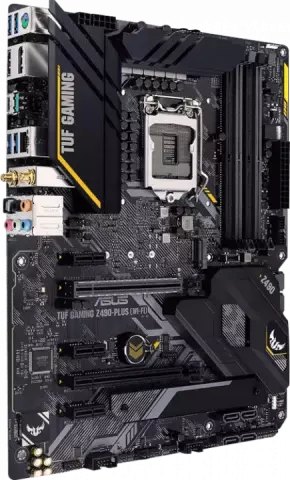

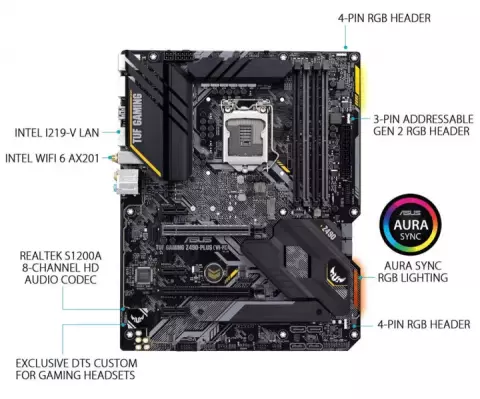

مادربرد ASUS مدل TUF GAMING Z490-PLUS (WIFI)

LGA1200

Intel Z490

Intel Socket LGA1200 for 10th Gen Intel Core

Pentium Gold and Celeron processors

DDR4

DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

DisplayPort\HDMI

Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

AMD 2-Way CrossFireX Technology

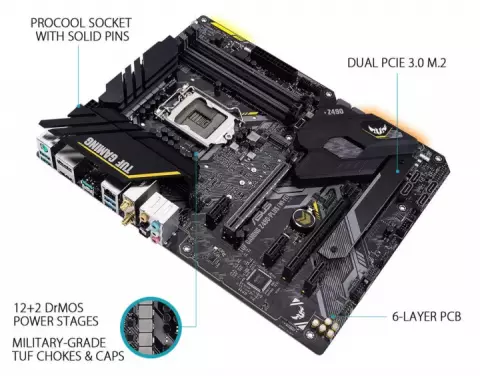

1 x M.2_1 socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 1 x M.2_2 socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)2

Raid 0

1

5

10

Intel I219-V 1Gb Ethernet TUF LANGuard

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

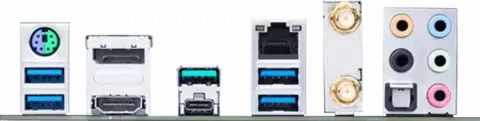

1 × USB Type-C Gen2

1 × USB 3.2 Gen2

4 × USB 3.2 Gen1

1xASUS Wi-Fi Module

ATX

1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin

Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
