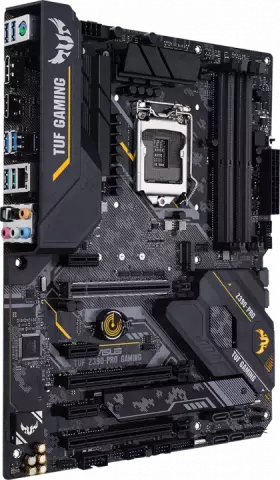

مادربرد ASUS مدل TUF GAMING Z390-PRO

LGA1151 v2

Intel Z390

Intel 9th/ 8th Gen Intel Core/ Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 3.0

DDR4

4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

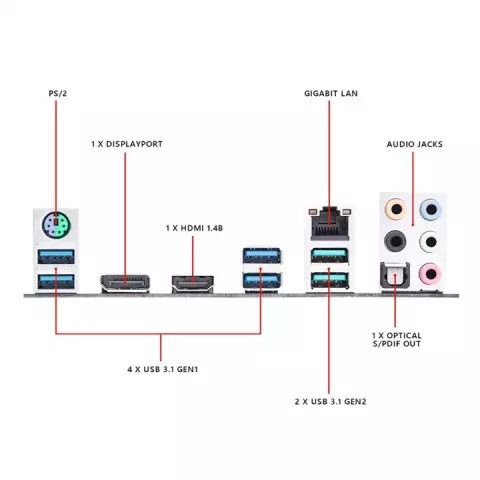

HDMI/DisplayPort

Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Support Raid 0

1

5

10

Intel I219V

featuring Turbo LAN TUF LANGuard

Realtek ALC S1200A 8-Channel High Definition Audio CODEC

1xPCIe 3.0/2.0 x16 (max at x2 mode)

ATX

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 1-port connector(s) support(s) additional 4 USB 2.0 port(s)

2 x Aura RGB Strip Header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x System panel connector 1 x COM port header

Fan Xpert4 - Advanced fan and liquid controls for ultimate cooling and quietness ASUS TUF PROTECTION - ASUS DIGI + VRM: 8+1 Phase digital power design - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Optimem II： - Improved DDR4 Stability ASUS EPU : - EPU TUF ENGINE! Power Design : - TUF Components (Choke

Cap. & MOSFET; certified by military-standard) AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time) Q-Installer - Auto download driver and software. Friendly for first PC builder.
