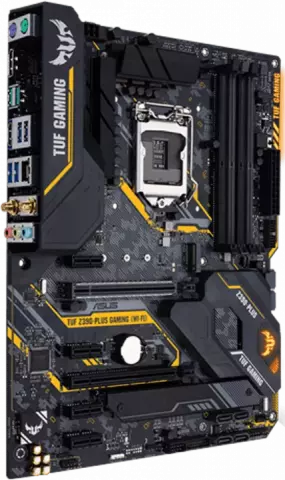

مادربرد ASUS مدل TUF GAMING Z390-PLUS WIFI

LGA1151

Intel Z390

سری Core، Pentium Gold، Celeron، نسل هشتم Intel، نسل نهم Intel

DDR4

4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC

Un-buffered Memory

دو کاناله

HDMI DisplayPort

رزولوشن HDMI : 4096x2160 با فرکانس 30 هرتز رزولوشن DisplayPort : 4096x2304 با فرکانس 60 هرتز

AMD CrossFireX Technology

1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

0, 1, 5, 10

Intel Rapid Storage Technology supports

Realtek® ALC S1200A 8-Channel High Definition Audio CODEC

8 کانال

Intel I219V, featuring Turbo LAN

TUF LANGuard

Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)

Intel Wireless-AC 9560

Wi-Fi 802.11 a/b/g/n/ac

Supports dual band frequency 2.4/5 GHz

Supports 2x2 MU-MIMO

Supports channel bandwidth: HT20/HT40/HT80/HT160

v5.0

2x USB 3.2 Gen 2

4x USB 3.2 Gen 1

2x Wi-Fi antenna ports

ATX

2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s) 1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

2x Aura RGB Strip Headers 1x CPU Fan connector (4 -pin) 1x AIO_PUMP connector 1x S/PDIF out header 1x 8-pin EATX 12 V Power connector 1x 24-pin EATX Power connector 1x Clear CMOS jumper 1x System panel connector

Fan Xpert4 ASUS Optimem II ASUS EPU TUF ENGINE! Power Design AURA ASUS Exclusive Features ASUS Quiet Thermal Solution ASUS EZ DIY ASUS Q-Design M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II Q-Installer
