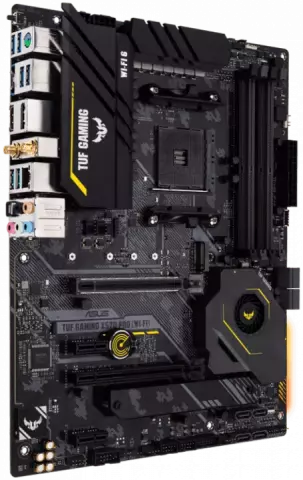

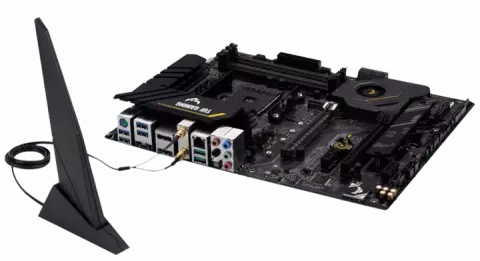

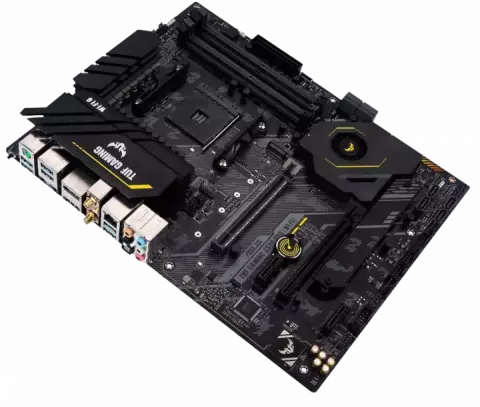

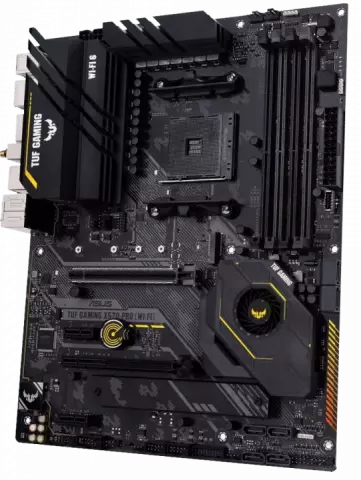

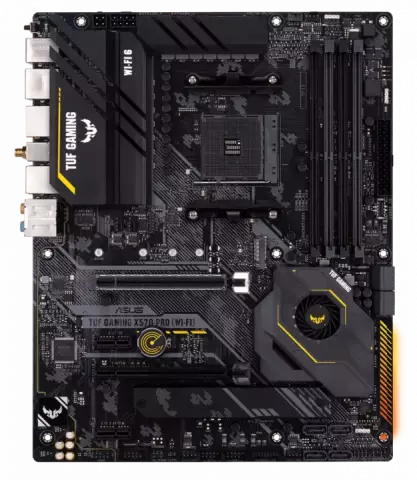

مادربرد ASUS مدل TUF GAMING X570-PRO (WI-FI)

مبتنی بر AMD

AM4

AMD X570

سری Ryzen

نسل پنجم (5000 Series) پردازنده AMD Ryzen، نسل چهارم (4000 G-Series) پردازنده AMD Ryzen، نسل سوم (3000 Series

3000 G-Series)، نسل دوم (2000 Series، 2000 G-Series)

DDR4

5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz

دو کاناله

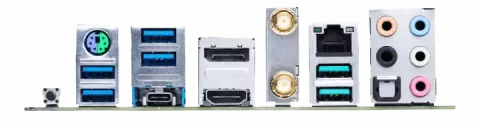

HDMI/DisplayPort

رزولوشن HDMI : 4096x2160 با فرکانس 24 هرتز رزولوشن DisplayPort : 4096x2160 با فرکانس 60 هرتز

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

RAID 0, 1, 10

1xPCIe 4.0 x16 (max at x4 mode) 2xPCIe 4.0 x1

Realtek ALC S1200A 8-Channel High Definition Audio CODEC

8 کانال

Intel I225-V 2.5Gb Ethernet

Intel Wi-Fi 6 AX200

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

v5.1

4 × USB 3.2 Gen1

2 × USB 3.2 Gen2

1 × USB Type-C

ATX

1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin

Type-C) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
