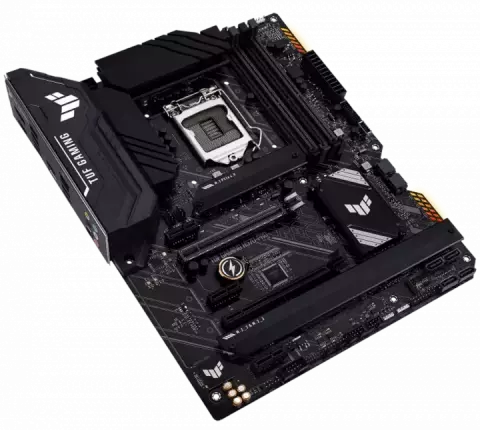

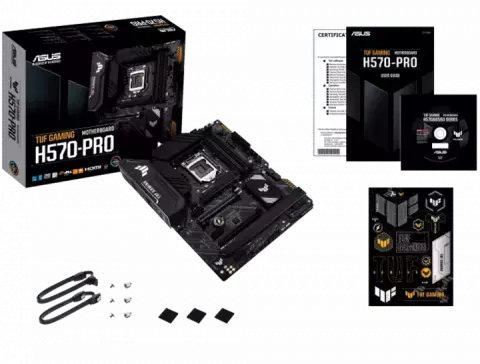

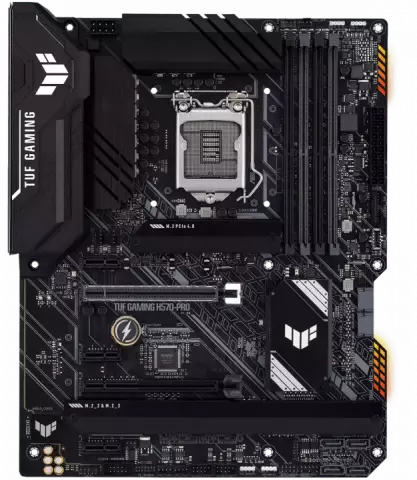

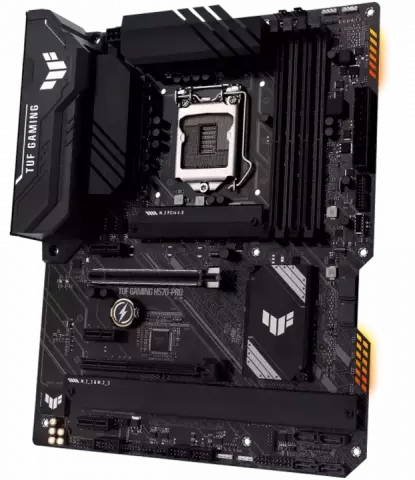

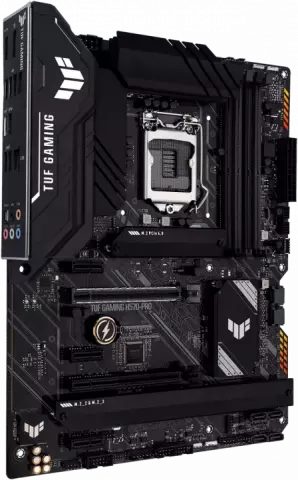

مادربرد ASUS مدل TUF GAMING H570-PRO

مبتنی بر Intel

LGA1200

Intel H570

نسل دهم و یازدهم Intel

سری Core، نسل یازدهم Intel سری Core، سری Pentium Gold، سری Celeron، نسل دهم Intel

DDR4

نسل یازدهم پردازنده های اینتل: 3200/2933/2800/2666/2400/2133 نسل دهم پردازنده های اینتل سری i7 و i9 : 2933/2800/2666/2400/2133 natively

others will run at the maximum transfer rate of DDR4 2666MHz

دو کاناله

1x DisplayPort 1.4 1x HDMI 1.4 / 2.0

رزولوشن HDMI : 4k با فرکانس 60 هرتز رزولوشن DisplayPort : 4096x2304 با فرکانس 60 هرتز

M.2_1 slot (Key M), type 2242/2260/2280

Only Intel 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

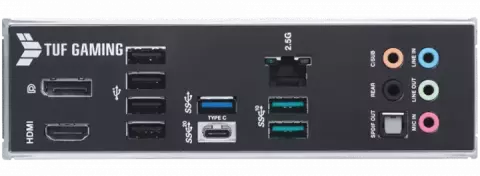

1 × USB Type-C

2 × USB 3.2 Gen2

4 × USB 2.0

1 × USB 3.2 Gen1

ATX

1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
