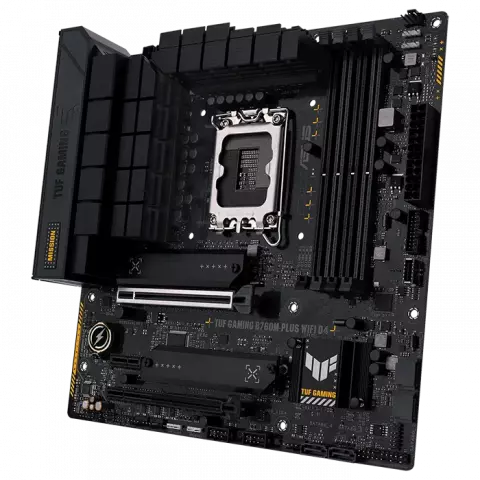

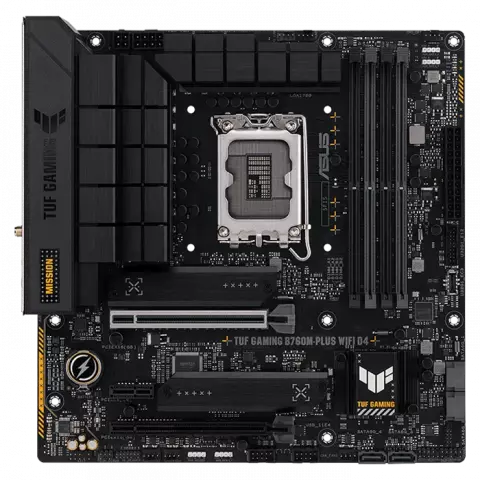

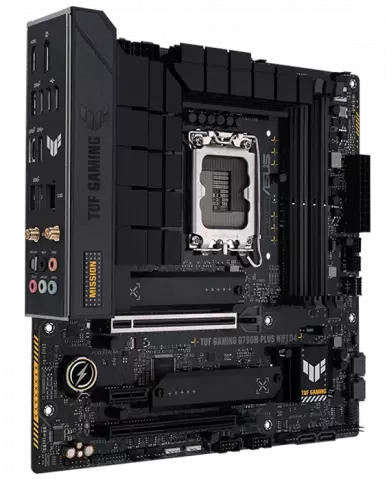

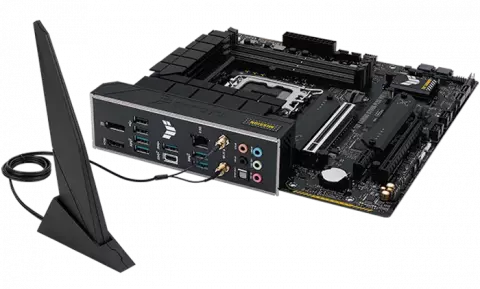

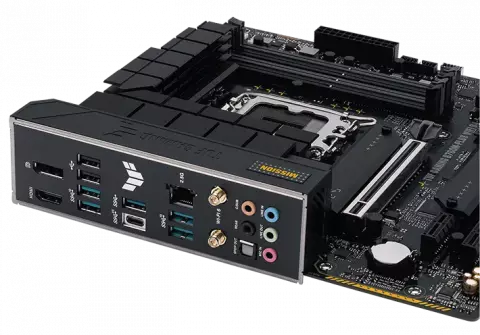

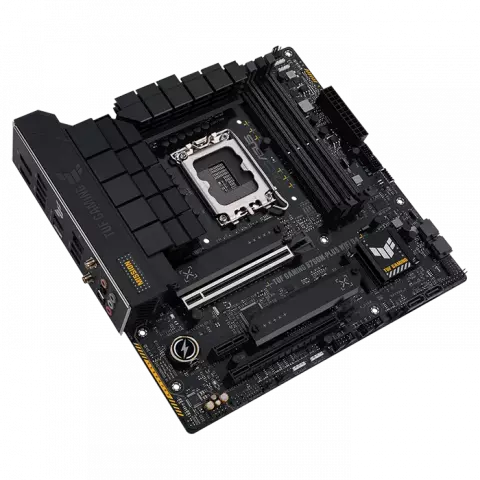

مادربرد ASUS مدل TUF Gaming B760M-PLUS WIFI D4

مبتنی بر Intel

LGA1700

Intel B760

نسل دوازدهم و سیزدهم Intel

نسل چهاردهم Intel

سری Core نسل سیزدهم و چهاردهم Intel سری Core، سری Pentium Gold، سری Celeron، نسل دوازدهم Intel

DDR4

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC

Un-buffered Memory

دو کاناله

OptiMem II

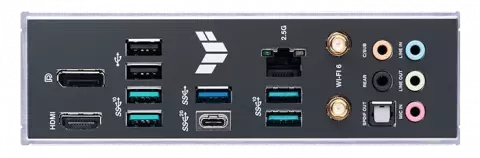

1x Display Port 1x HDMI Port

رزولوشن DisplayPort : 4K با فرکانس 60 هرتز

رزولوشن HDMI : 4K با فرکانس 60 هرتز

Intel® 14th & 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

0/1/5/10

Realtek 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

1x Realtek 2.5Gb Ethernet

Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

v5.2

2 × USB 2.0

4 × USB 3.2 Gen2

1 × USB 3.2 Gen1

1 * USB 3.2 Gen 2x2

mATX

1x USB 3.2 Gen 1 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports

1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 1x 4-pin +12V Power connector 3x Addressable Gen 2 headers 1x AURA RGB header 1x Clear CMOS header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header with Chassis intrude function 1x Thunderbolt™ (USB4®) header

ASUS TUF PROTECTION ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync
