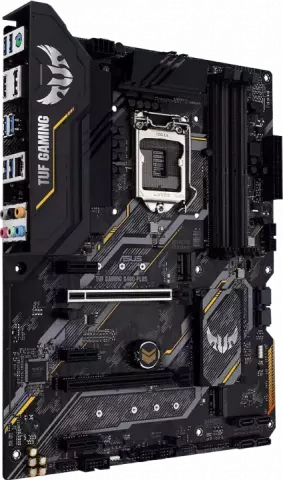

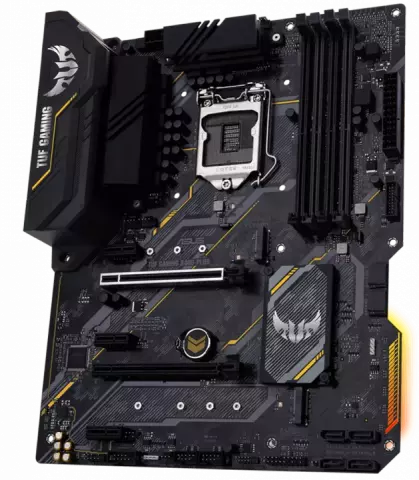

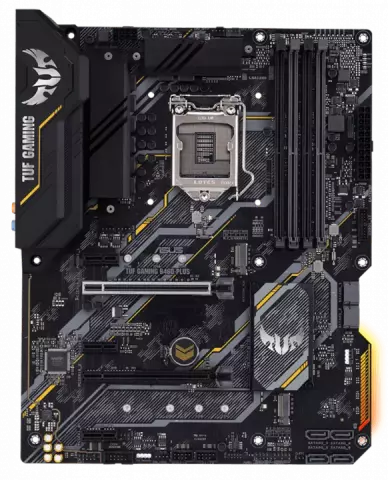

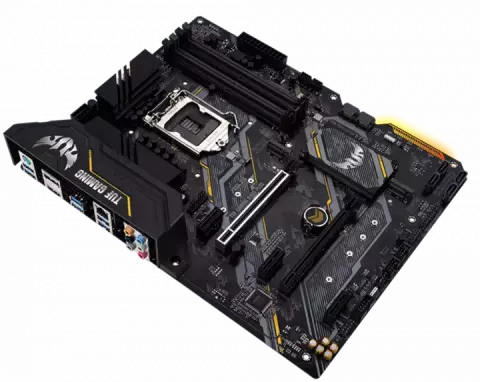

مادربرد ASUS مدل TUF GAMING B460-PLUS

LGA1200

intel B460

Socket 1200 for 10th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

DDR4

2933/2800/2666/2400/2133 MHz

دو کاناله

DisplayPort 1.4/HDMI 1.4b

Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

Intel Rapid Storage Technology supports

Realtek ALC S1200A 8-Channel High Definition Audio CODEC

8 کانال

Intel I219-V 1Gb Ethernet

6 × USB 3.2 Gen1

ATX

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
