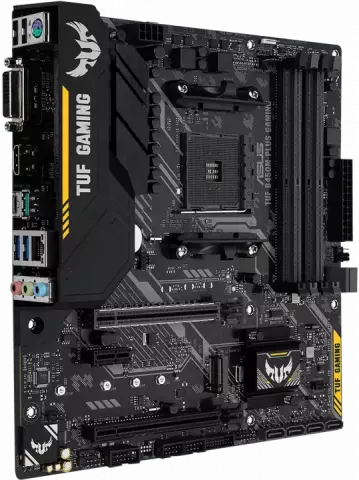

مادربرد Asus DDR4 مدل TUF GAMING B450M-PLUS

AM4

AMD B450

AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Generation Processors Supports CPU up to 8 cores

DDR4

3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133

Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU

HDMI/DVI-D

Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireXTechnology

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA mode)

Support Raid 0

1

10

Realtek RTL8111H TUF LANGuard

Realtek ALC887-VD2 8-Channel High Definition Audio CODEC

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 1 x PCIe 2.0 x1 Generation Processors : 2 x SATA 6Gb/s port(s) AMD B450 chipset : 4 x SATA 6Gb/s port(s)

1 x DVI-D

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header

ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control for stable power AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
