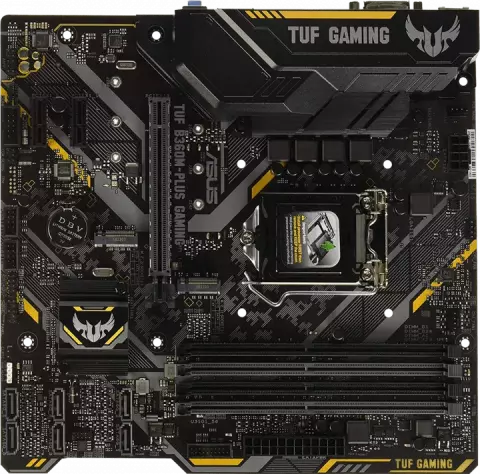

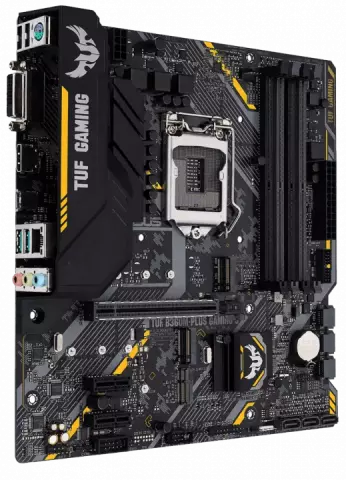

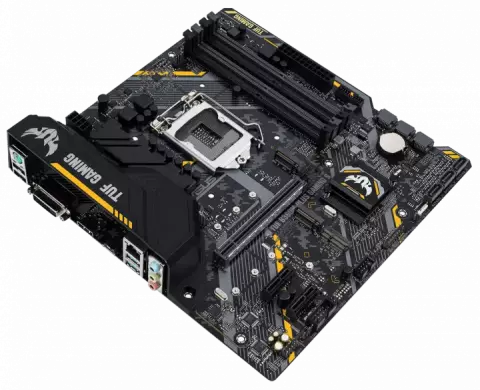

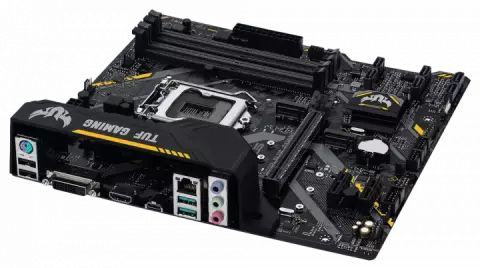

مادربرد Asus DDR4 مدل GAMING TUF B360M PLUS

LGA1151 v2

Intel B360

Intel Socket 1151 9th / 8th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

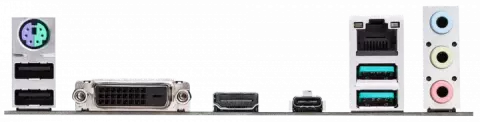

HDMI/DVI-D ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution1920 x 1200 @ 60 Hz

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

Intel I219V

1 x Gigabit LAN TUF LANGuard

Realtek ALC887 8-Channel High Definition Audio CODEC

1

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin

moss green) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Aura RGB Strip Header 2 x M.2 Socket 3 for M Key

type 2242/2260/2280 devices 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector

ASUS TUF PROTECTION ASUS SafeSlot: Protect your graphics card Investment ASUS ESD Guard: Enhanced ESD protection ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: 5 Phase digital power design ASUS OptiMem： Optimem (Improved DDR4 stability) ASUS EPU : EPU ASUS Exclusive Features : AI Suite 3 Ai Charger PC Cleaner File Transfer ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution & MOS Heatsink ASUS Fan Xpert 2+ ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
