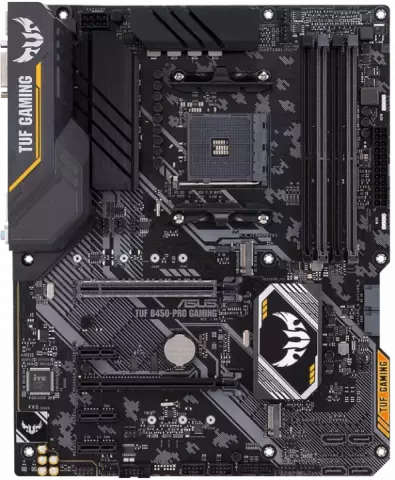

مادربرد ASUS مدل TUF B450-PRO GAMING

AM4

AMD B450

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors

DDR4

DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DVI-D

Vega Graphics Processors

Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireX Technology

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA mode)

0

1

10

Realtek RTL8111H TUF LANGuard

Realtek ALC S1200A 8-Channel High Definition Audio CODEC

AMD Athlon with Radeon Vega Graphics Processors : 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD B450 chipset : 1 x PCIe 2.0 x16 (max at x4 mode

1 x DVI-D

2 x USB 3.1 Gen 2 (teal blue)Type-A

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x Aura RGB Strip Header 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header

ASUS TUF PROTECTION ASUS SafeSlot: Protect your graphics card Investment ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: Precision control for stable power ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! AURA : Aura Lighting Control Aura RGB Strip Headers ASUS Exclusive Features : AI Suite 3 Ai Charger PC Cleaner ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution & MOS Heatsink ASUS Fan Xpert 4 Core ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM
