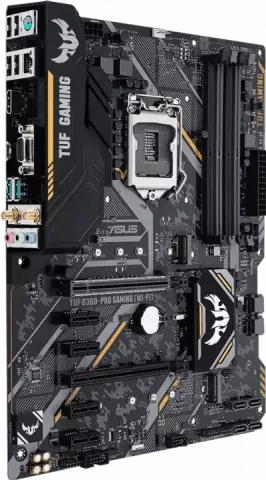

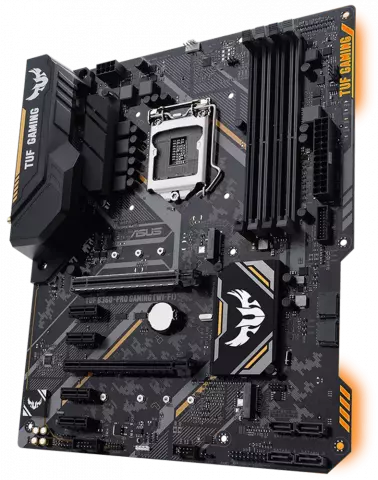

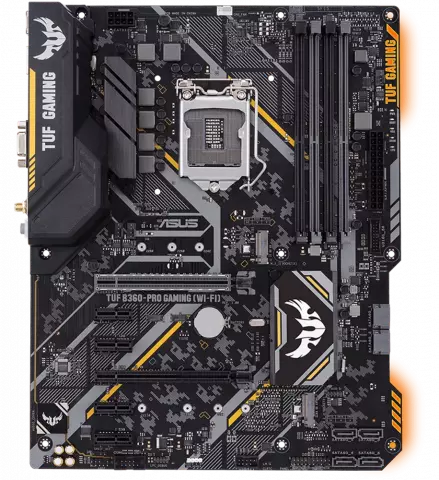

مادربرد ASUS مدل TUF B360-PRO GAMING WIFI

LGA1151 v2

Intel B360

Intel Socket 1151 for 9th / 8th Generation Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

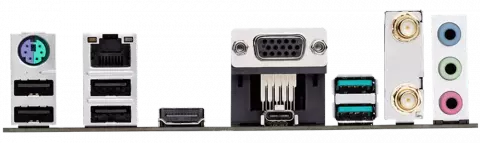

HDMI/D-Sub ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Intel I219V

1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility TUF LANGuard

Realtek ALC887 8-Channel High Definition Audio CODEC

Intel Optane Memory Ready Wireless Data Network : Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Bluetooth : Bluetooth 5.0

2 × USB 3.1 Gen2

4 × USB 2.0

2 x Wi-Fi antenna port(s)

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s)

ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI + VRM: 4+2+1 Phase digital power design ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS EPU : EPU TUF ENGINE! Power Design : TUF Components (Choke

Cap. & MOSFET; certified by militarystandard) AURA : Aura Lighting Control Aura RGB Strip Headers ASUS Exclusive Features : AI Suite 3 Ai Charger ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution ASUS Fan Xpert 4 Core ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode CPU Installation Tool Three-step simplicity and safety ASUS Q-Design : ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM
