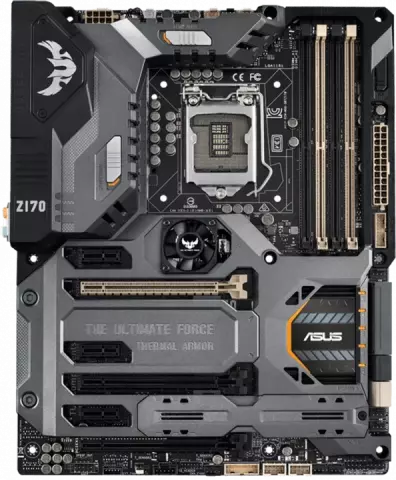

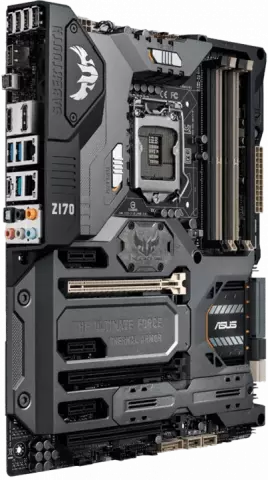

مادربرد Asus DDR4 مدل SABERTOOTH Z170 MARK 1

LGA1151

Intel Z170

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR4

DDR4 2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI / DisplayPort ports

Integrated Graphics Processor- Intel® HD Graphics support

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz

Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology

2 x SATA Express port

2 x SATA Express port

Support Raid 0

1

5

10

Intel® I219V

1 x Gigabit LAN Controller(s)

Realtek® ALC1150 8-Channel High Definition Audio CODEC

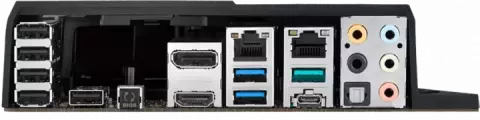

1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O 1 x TUF Detective USB port

ATX

Intel® Z170 chipset : 6 x USB 3.0/2.0 port(s) (2 at back panel

blue

4 at mid-board) Intel® Z170 chipset : 8 x USB 2.0/1.1 port(s) (4 at back panel

black

4 at mid-board) ASMedia® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel

teal blue

Type-A) ASMedia® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel

Type-C

Reversible)

1 x AAFP connector 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA Express connector:

Compatible with 4 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 with M Key design

type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 6 x Chassis Fan connector(s) (4 -pin) 3 x Assistant Fan connector(s) (1 x 3 -pin

[White]) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Chassis Intrusion connector(s) 1 x DRCT header(s) 1 x MemOK! button(s) 3 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin) 1 x 14-1 pin TPM connector

OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance TUF Features: TUF ENGINE! Power Design : - 8 +4 Digital Phase Power Design - TUF Components (New Alloy Choke

Ti-Cap. & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : - TUF Thermal Armor with Flow Valve - TUF Thermal Radar 2 with Thermistors - TUF ICe Safe & Stable! Guardian Angel : "We Got Your Back!" Shape Force - TUF Fortifier - Dust Defenders with connector covers and back I/O dust filter - TUF ESD Guards 2 ASUS Exclusive Features : - GPU Boost - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger - Ai Charger+ - M.2 & SATA Express - Anti-Surge - Front Panel USB 3.0 Support - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker - Turbo LAN - PC Cleaner ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED

HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
