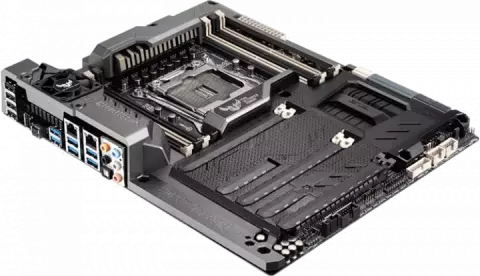

مادربرد Asus DDR4 مدل SABERTOOTH X99

LGA2011-v3

Intel X99

Core i7 Processors

DDR4

2400/2133 MHz

non-ECC

un-buffered memory

Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology

1 x M.2 Socket 3

graywith M Key

type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)

1 x SATA Express portcompatible with 2 x SATA 6.0 Gb/s ports

Support Raid 0

1

5

10

Intel I218V

1 x Gigabit LAN Controller(s) Realtek 8111GR

1 x Gigabit LAN Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance

Realtek ALC1150 8-Channel High Definition Audio CODEC

40-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16

x16/x16

x16/x16/x8) 28-Lane CPU 3 x PCIe 3.0/2.0 x16 ( x16

x16/x8

x16/x8/x4) 1 x PCIe 2.0 x4 (x2 mode) 1 x PCIe 2.0 x1

1 x USB BIOS Flashback Button(s)

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x AAFP connector 1 x SATA Express connector: gray

compatible with 2 x SATA 6.0 Gb/s ports 1 x TPM header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 1 x CPU fan with PWM control 4 x Chassis Fan connector(s) (4 x 4 -pin) 5 x Assistant Fan connector(s) (5 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Q-Connector) 1 x Chassis Intrusion connector(s) 1 x MemOK! button(s) 3 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)

TUF Features: TUF ENGINE! Power Design : - 8 +2 Digital Phase Power Design - TUF Components (Choke

Cap. & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : - TUF Thermal Armor - TUF Thermal Radar 2 with Thermistors - TUF ICe Safe & Stable! Guardian Angel : "We Got Your Back!" Shape Force - TUF Fortifier - Dust Defenders with connector covers and back I/O dust filter - TUF ESD Guards 2
