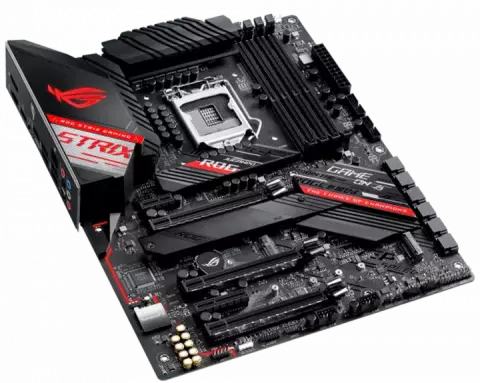

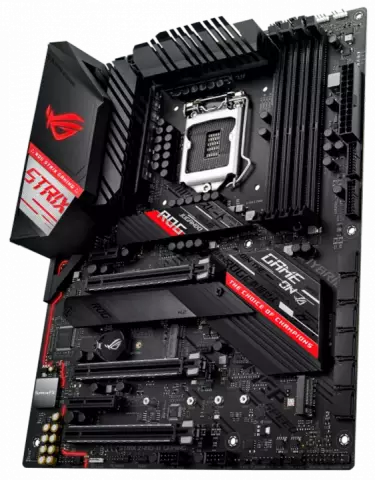

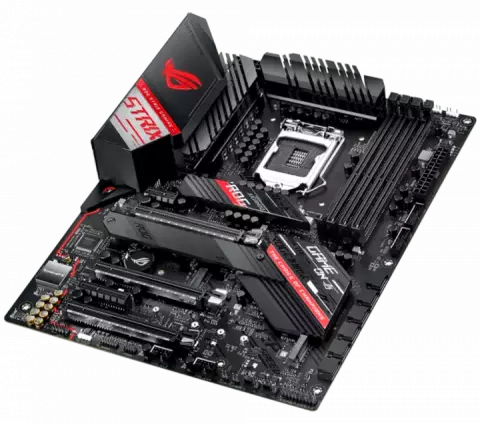

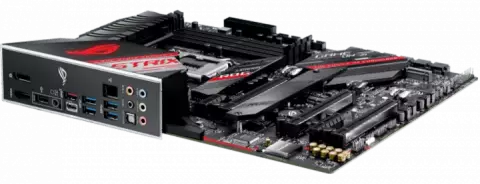

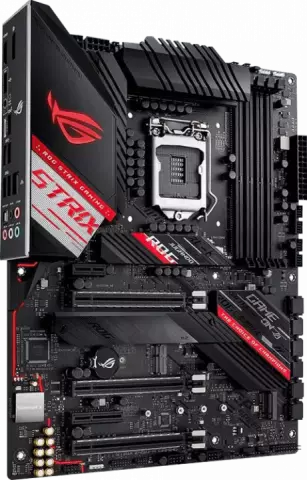

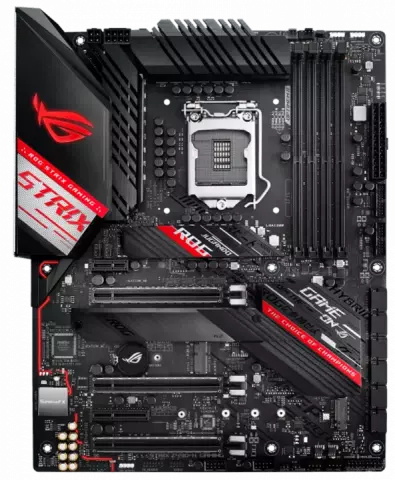

مادربرد ASUS مدل ROG STRIX Z490-H GAMING

LGA1200

Intel Z490

Intel Socket 1200 for 10th Gen Intel Core

Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

DDR4

4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

دو کاناله

Non-ECC

Un-buffered Memory OptiMem II

1x DisplayPort /1xHDMI

Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

AMD 2-Way CrossFireX Technology

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

1 x PCIe 3.0 x4 (max at x2 mode)

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

7.1 کانال

Intel I225-V 2.5Gb Ethernet

ASUS LANGuard

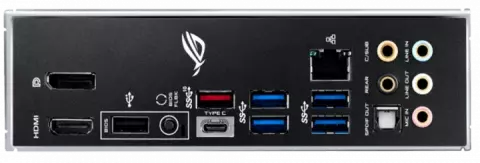

1 × USB Type-C Gen2

1 × USB 3.2 Gen2

4 × USB 3.2 Gen1

1 × USB 2.0

ATX

2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x M.2 Socket 1 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x VRM_HS_FAN Header
