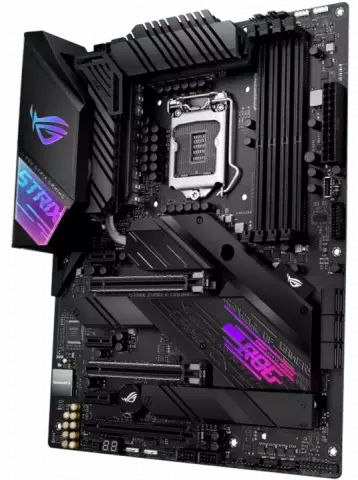

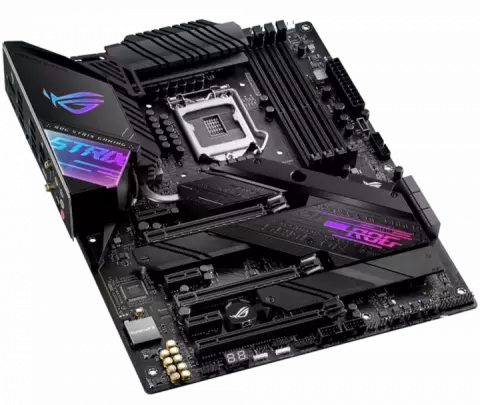

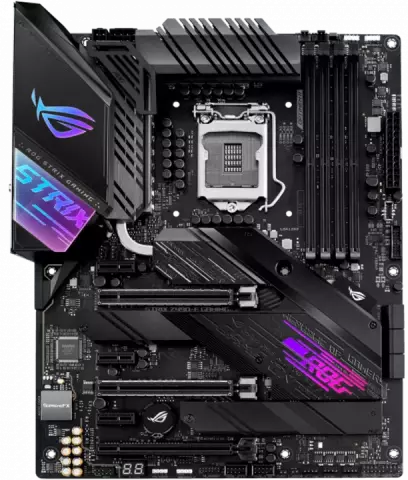

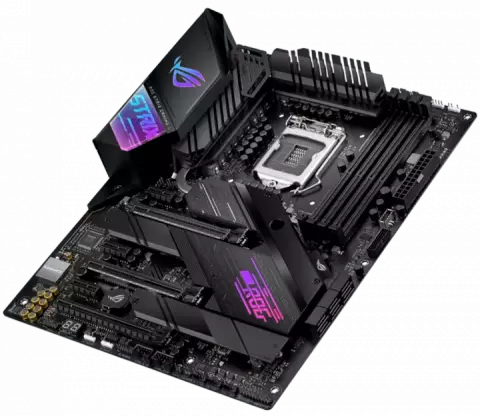

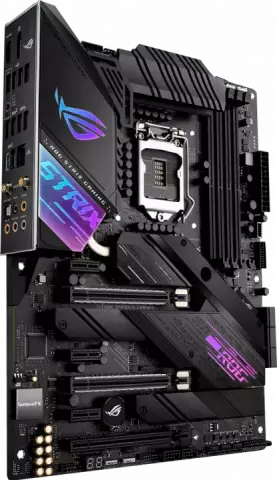

مادربرد ASUS مدل ROG STRIX Z490-E GAMING

مبتنی بر Intel

LGA1200

Intel Z490

نسل دهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل دهم Intel

DDR4

4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133

دو کاناله

Non-ECC

Un-buffered Memory OptiMem II

DisplayPort / HDMI

Supports NVIDIA 2-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

8 کانال

Intel I225-V 2.5Gb Ethernet

ASUS LANGuard

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

v5.1

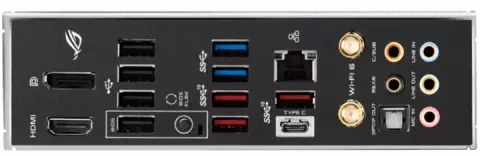

3 × USB 3.2 Gen2

1 × USB Type-C Gen2

2 × USB 3.2 Gen1

4 × USB 2.0

ATX

1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin

Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 2 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x M.2 Socket 1 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x Q-Code 1 x VRM_HS_FAN Header
