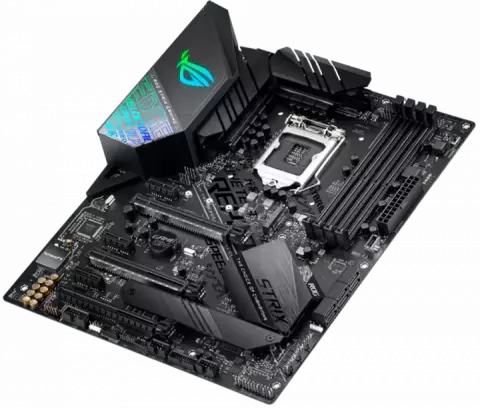

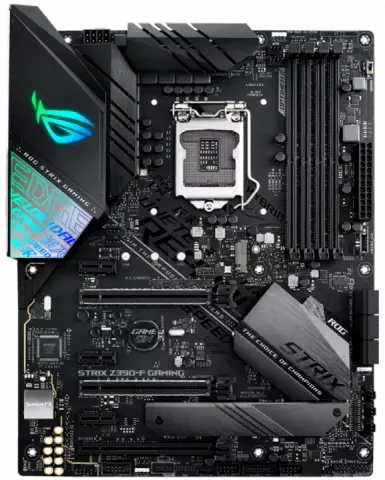

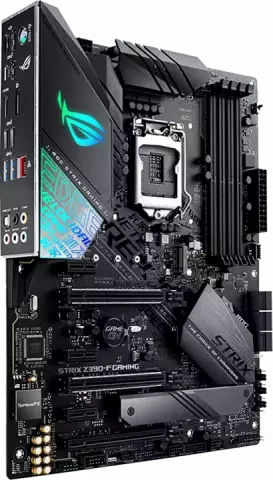

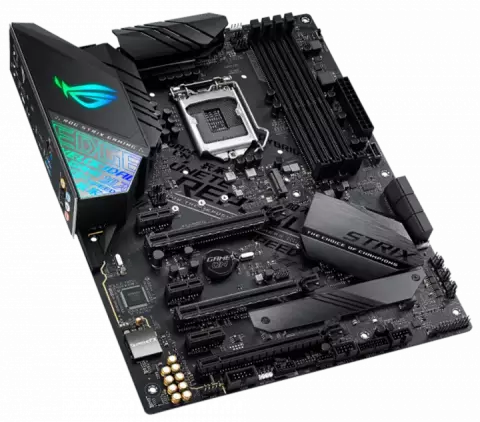

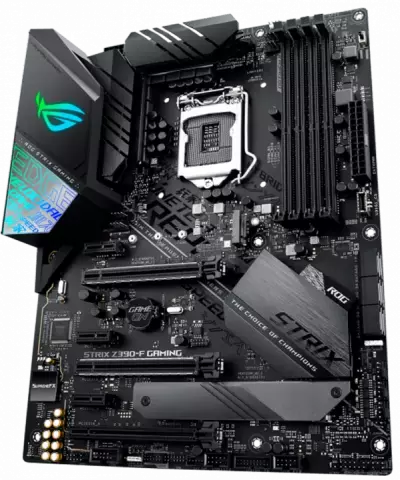

مادربرد ASUS مدل ROG STRIX Z390-F GAMING

مبتنی بر Intel

LGA1151

Intel Z390

نسل هشتم و نهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل هشتم Intel، نسل نهم Intel

DDR4

4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

non-ECC

un-buffered memory

HDMI/DisplayPort

Intel HD Graphics support

Supports HDMI with max. resolution 4096 x 2160 @ 30Hz Supports DisplayPort with max.resolution 4096 x 2304 @ 60 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

8 کانال

Intel I219V

Anti-surge LANGuard

ROG GameFirst Technology

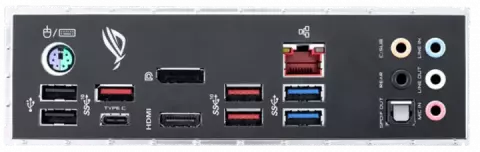

3 × USB 3.1 Gen2

1 × USB Type-C Gen2

2 × USB 3.1 Gen1

2 × USB 2.0

ATX

1 x USB 3.1 Gen 1 front panel TypeC connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header
